4-jaw scroll chuck Bison type 3744-160-4

Preview: Vierbacken-Drehfutter Typ 3744-160-4 Preview: Zeichnung Vierbacken-Drehfutter Typ 3744-160-4

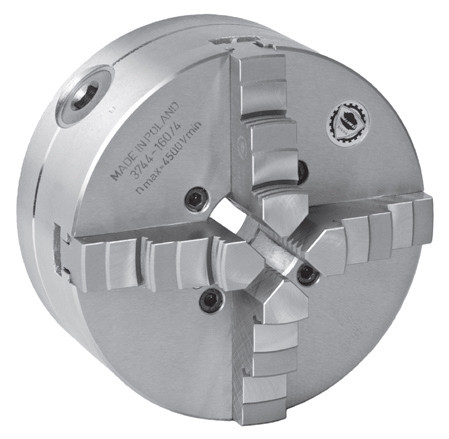

Vierbacken-Drehfutter Typ 3744-160-4

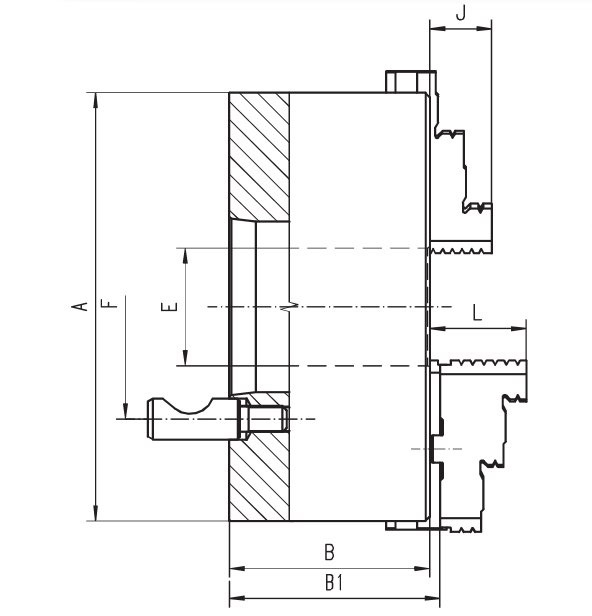

Zeichnung Vierbacken-Drehfutter Typ 3744-160-4

€1,086.00 *
€1,292.34 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353744240400
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 13 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
4-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3744  Ø... more
Close menu
Product information "4-jaw scroll chuck Bison type 3744-160-4"

4-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3744 Ø 160 mm, taper 4
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3744-160-4"
Technical data
more
Zurück

353744240400-3744-160-4

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "4-jaw scroll chuck Bison type 3744-160-4"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.
