Hard master jaws for 4-jaw scroll chucks Ø 160 mm

€237.00 *
€282.03 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398539630200
  • 84662091
  • 0,8 kg
  • 0
Hard master jaws for Bison 4-jaw scroll chucks Ø 160 mm - material: steel - 4... more
Product information "Hard master jaws for 4-jaw scroll chucks Ø 160 mm"

Hard master jaws
for Bison 4-jaw scroll chucks Ø 160 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Hard base jaws
Jaws for lathe chucks type: 4-jaw lathe chucks
Jaws for Ø: 160 mm
Related links to "Hard master jaws for 4-jaw scroll chucks Ø 160 mm"

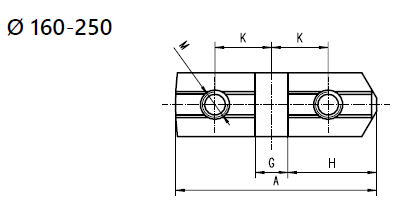

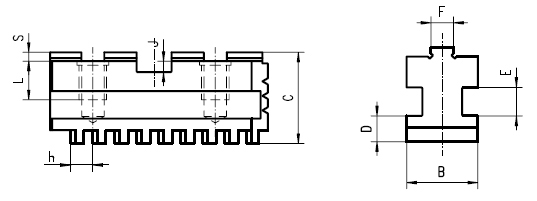

Futtergröße / Chuck size A B C D E F G H J K L M* S h kg pro... more
Futtergröße /
Chuck size
A B C D E F G H J K L M* S h kg pro Stück /
kg per piece
125 54 20 28,0 8,0 8 7,94 12,69 22,6 4,0 16,00 13,5 M8 3,2 7,0 0,1
160 65 20 29,0 8,0 8 7,94 12,69 28,6 4,0 19,05 14,0 M10 3,2 8,0 0,2
200 79 25 33,0 9,0 10 7,94 12,69 34,9 4,0 22,25 14,0 M10 3,2 8,0 0,3
250 92 28 36,0 11,0 12 12,70 19,04 39,7 4,0 27,00 16,0 M12 3,2 9,0 0,5
315 110 32 40,0 12,7 12 12,70 19,04 47,6 4,0 31,75 16,0 M12 3,2 10,0 0,8
400 130 36 49,0 15,0 14 12,70 19,04 57,1 7,2 38,10 22,0 M16 3,2 12,0 1,1
500 166 40 54,0 16,0 14 12,70 19,04 57,1 7,2 38,10 32,5 M20 3,2 14,2 2,2
630 210 50 54,5 16,0 14 12,70 19,04 57,1 7,2 38,10 32,5 M20 3,2 14,2 3,3
800 225 50 54,5 16,0 14 12,70 19,04 57,1 7,2 38,10 32,5 M20 3,2 14,2 3,4

* Schrauben sind im Lieferumfang enthalten / Screws are included in delivery

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
