€824.67 incl. VAT
Prices plus VAT plus shipping costs
Delivery time upon request
- Order number: 353264000800
- Customs tariff number: 84662091
- European article number:
- Weight: 4 kg
- In stock: 0
3-jaw scroll chuck Bison - 3-jaw scroll chuck Bison with fine adjustment - type 3264 Ø... more
Product information "3-jaw scroll chuck Bison type 3264-100"

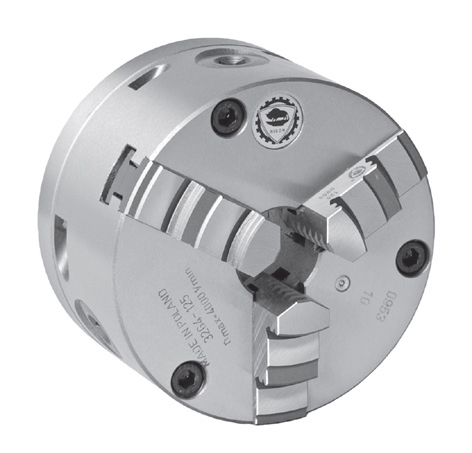

3-jaw scroll chuck Bison
- 3-jaw scroll chuck Bison with fine adjustment
- type 3264 Ø 100 mm
- ground working surfaces
- repeatability: 0,015 mm
- fine adjustment radially set screws privide nearly 0 run-out
- the clamped workpiece is adjusted to the required concentricity
by means of 3 tangentially arranged adjusting screws
- hardened adjusting screws
- mounted on the machine tool spindle from the back of
the chuck by using an adapter plate
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
and 1 wrench
