3-jaw scroll chuck Bison type 3264-200

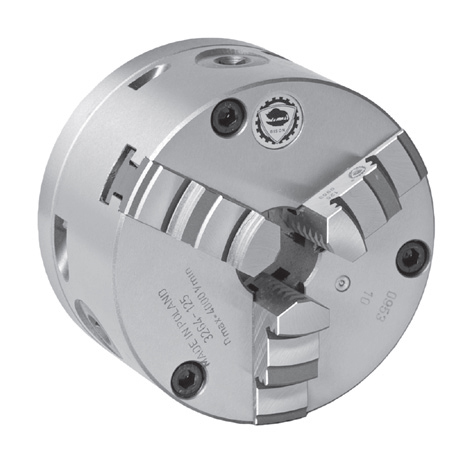

Preview: 3-jaw scroll chuck Bison type 3264-200 Preview: Drawing 3-jaw scroll chuck Bison type 3264-200
3-jaw scroll chuck Bison type 3264-200

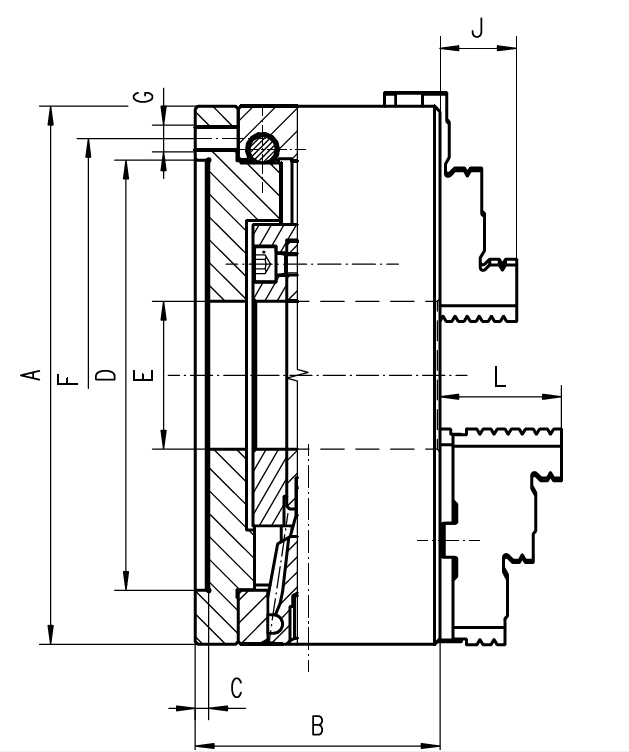

Drawing 3-jaw scroll chuck Bison type 3264-200

€945.00 *
€1,124.55 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353264030300
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 17,2 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
3-jaw scroll chuck Bison - 3-jaw scroll chuck Bison with fine adjustment - type 3264 Ø... more
Close menu
Product information "3-jaw scroll chuck Bison type 3264-200"

3-jaw scroll chuck Bison

- 3-jaw scroll chuck Bison with fine adjustment
- type 3264 Ø 200 mm
- ground working surfaces
- repeatability: 0,015 mm
- fine adjustment radially set screws privide nearly 0 run-out
- the clamped workpiece is adjusted to the required concentricity
  by means of 3 tangentially arranged adjusting screws
- hardened adjusting screws
- mounted on the machine tool spindle from the back of
  the chuck by using an adapter plate
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Type: 3-jaw lathe chucks
Ø : 200 mm
DIN: 6350
Jaws: one-piece jaws
Material: Cast iron
Make: Bison
Related links to "3-jaw scroll chuck Bison type 3264-200"

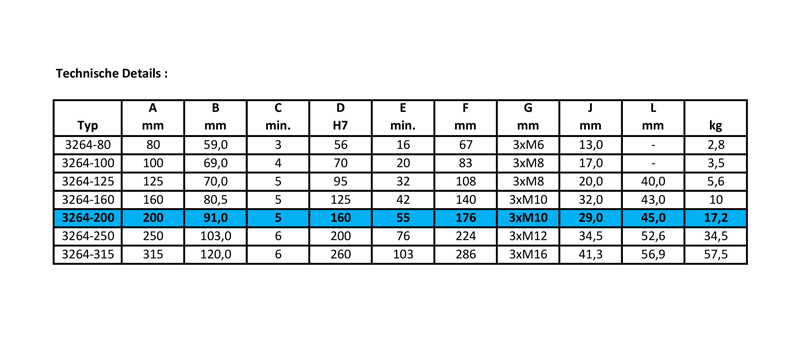

Technical data
A B C min. D H7 E min. F G J L kg 100 69,0 4 70 20 83... more
Zurück
A B C min. D H7 E min. F G J L kg
100 69,0 4 70 20 83 3xM8 17,0 - 3,5
125 70,0 5 95 32 108 3xM8 20,0 40 5,6
160 80,5 5 125 42 140 3xM10 32,0 43 10,0
200 91,0 5 160 55 176 3xM10 29,0 45 17,2
250 103,0 6 200 76 224 3xM12 34,5 52,6 34,5
315 120,0 6 260 103 286 3xM16 41,3 56,9 57,5

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
