- Order number: 353264020100
- Customs tariff number: 84662091
- European article number:
- Weight: 12 kg
- In stock: 0
3-jaw scroll chuck Bison - 3-jaw scroll chuck Bison with fine adjustment - type 3264 Ø... more
Product information "3-jaw scroll chuck Bison type 3264-160"

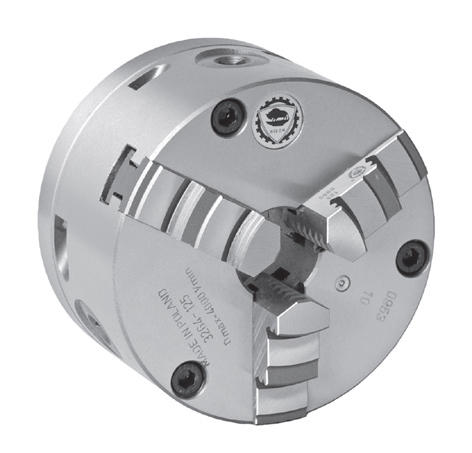

3-jaw scroll chuck Bison
- 3-jaw scroll chuck Bison with fine adjustment
- type 3264 Ø 160 mm
- ground working surfaces
- repeatability: 0,015 mm
- fine adjustment radially set screws privide nearly 0 run-out
- the clamped workpiece is adjusted to the required concentricity
by means of 3 tangentially arranged adjusting screws
- hardened adjusting screws
- mounted on the machine tool spindle from the back of
the chuck by using an adapter plate
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
and 1 wrench
