3-jaw scroll chuck Bison type 3295-500

€3,673.50 *
€4,371.47 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353295050700
  • 84662091
  • 75,8 kg
  • 0
3-jaw scroll chuck Bison - Bison Oil Country Chuck with large through-hole - type 3295... more
Product information "3-jaw scroll chuck Bison type 3295-500"

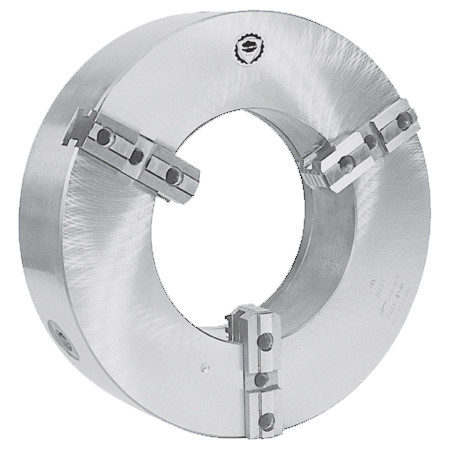

3-jaw scroll chuck Bison

- Bison Oil Country Chuck with large through-hole
- type 3295 Ø 500 mm
- designed for gripping long workpieces or pipes during machining
- hardened and ground working surfaces
- high gripping force
- high accuracy
- chucks can work individually or in pairs, mounted on
  opposite sides of the lathe spindle
- material of body: cast iron
- 2-piece jaws
- incl. 1 set of soft top jaws, 1 set of hard master jaws
  and 1 wrench

Type: 3-jaw lathe chucks
Ø : 500 mm
Jaws: two-piece jaws
Material: Cast iron
Make: Bison
Related links to "3-jaw scroll chuck Bison type 3295-500"

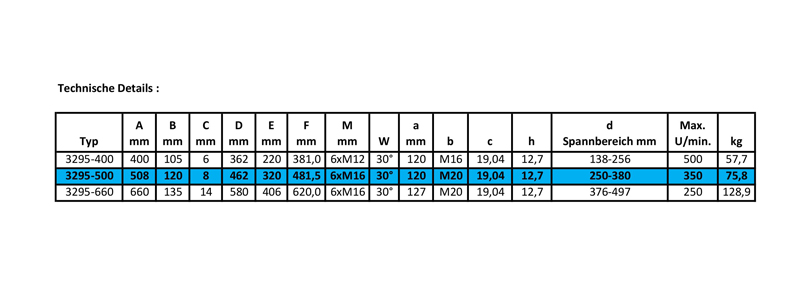

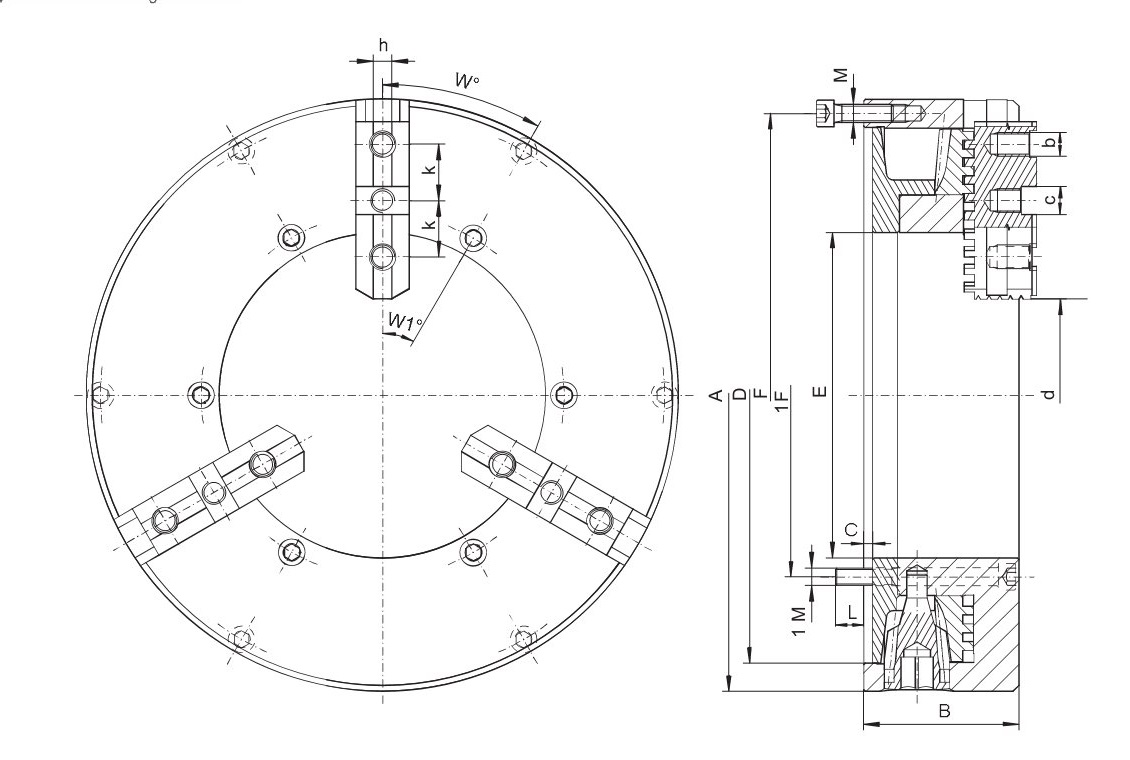

A B C D E F M W X a b c h d... more
A B C D E F M W X a b c h d Spannbereich mm /
d Clamping range mm
Max. U/min. /
Max. rpm
kg
400 105 6 362 220 381,0 6xM12 30° 15° 120 M16 19,04 12,7 138 – 256 500 57,7
508 120 8 462 320 481,5 6xM16 30° 15° 120 M20 19,04 12,7 250 – 380 350 75,8
660 135 14 580 406 620,0 6xM16 30° 15° 127 M20 19,04 12,7 376 – 497 250 128,9
800 151 7 710 410 460,0 6xM24 - 30° 225 M20 19,04 12,7 260 – 566 200 212,0
1000 171 12 720 572 647,6 6xM30 - 30° 248 M22 19,04 12,7 500 – 719 200 481,0

Inkl. 1 Satz weicher Aufsatzbacken, 1 Satz harter Grundbacken und 1 Schlüssel /
Incl. 1 set of soft top jaws, 1 set of hard master jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
