3-jaw scroll chuck Bison type 3205-630

€6,028.50 *
€7,173.92 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353205100300
  • 84662091
  • 250 kg
  • 0
3-jaw scroll chuck Bison - plain back mounting DIN 6350  - type 3205  Ø 630 mm... more
Product information "3-jaw scroll chuck Bison type 3205-630"

3-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3205 Ø 630 mm
- ground working surfaces
- material of body: cast iron
- 2-piece jaws
- incl. 1 set of hard top jaws, 1 set of hard master jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3205-630"

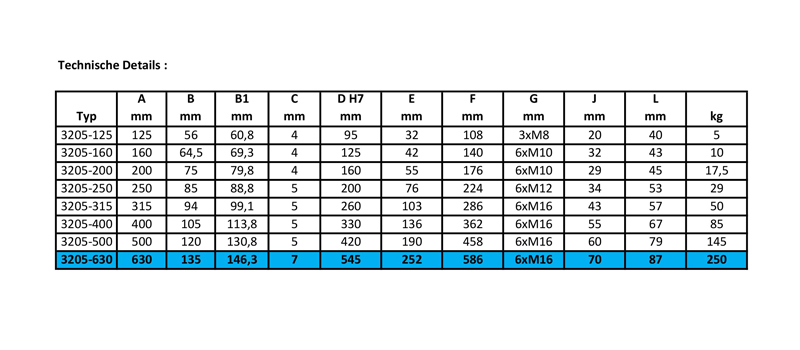

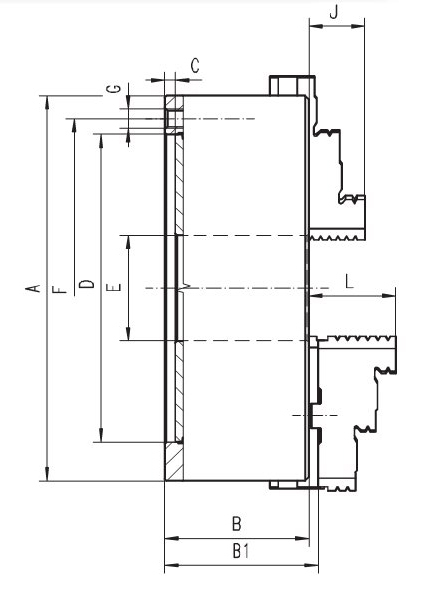

A B B1 C D H7 E F G J L kg 125 56,0 60,8 4 95 32 108 3xM8 20 40 5,0... more
ABB1CD H7EFGJLkg
12556,060,8495321083xM820405,0
16064,569,34125421406xM10324310,0
20075,079,84160551766xM10294517,5
25085,088,85200762246xM12345329,0
31594,099,152601032866xM16435750,0
400105,0113,853301363626xM16556785,0
500120,0130,854201904586xM166079145,0
630135,0146,375452525866xM167087250,0

Inkl. 1 Satz harter Aufsatzbacken, 1 Satz harter Grundbacken und 1 Schlüssel /
Incl. 1 set of hard top jaws, 1 set of hard master jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
