3-jaw scroll chuck Bison type 3204-315

€1,209.00 *
€1,438.71 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353204070700
  • 84662091
  • 50 kg
  • 0
3-jaw scroll chuck Bison - plain back mounting DIN 6350  - type 3204  Ø 315 mm... more
Product information "3-jaw scroll chuck Bison type 3204-315"

3-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3204 Ø 315 mm
- ground working surfaces
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3204-315"

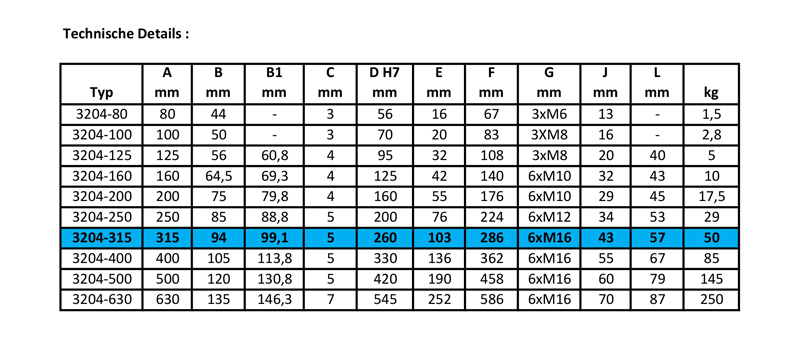

A B B1 C D H7 E F G J L kg 80 44,0 - 3 56 16 67 3xM6 13 - 1,5 100... more
ABB1CD H7EFGJLkg
8044,0-35616673xM613-1,5
10050,0-37020833xM816-2,8
12556,060,8495321083xM820405,0
16064,569,34125421406xM10324310,0
20075,079,84160551766xM10294517,5
25085,088,85200762246xM12345329,0
31594,099,152601032866xM16435750,0
400105,0113,853301363626xM16556785,0
500120,0130,854201904586xM166079145,0
630135,0146,375452525866xM167087250,0

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
