Soft solid jaws for 3-jaw scroll chucks Ø 315 mm

€202.50 *
€240.98 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398536060800
  • 84662091
  • 5,7 kg
  • 0
Soft solid jaws for Bison 3-jaw scroll chucks Ø 315 mm - material: steel - 3 pieces/set more
Product information "Soft solid jaws for 3-jaw scroll chucks Ø 315 mm"

Soft solid jaws
for Bison 3-jaw scroll chucks Ø 315 mm

- material: steel
- 3 pieces/set

Make: Bison
Jaws: Soft solid jaws
Jaws for lathe chucks type: 3-jaw lathe chucks
Jaws for Ø: 315 mm
Related links to "Soft solid jaws for 3-jaw scroll chucks Ø 315 mm"

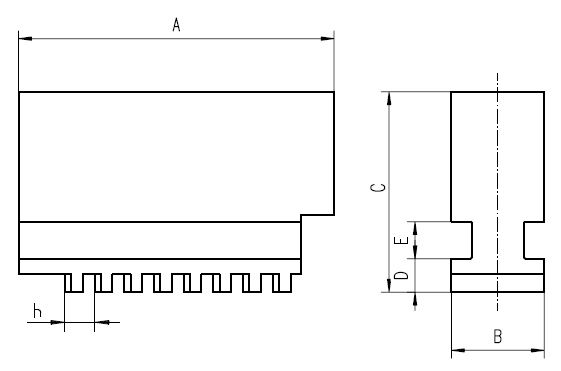

Futtergröße / Chuck size A B C D E h kg pro Stück / kg per piece 80... more
Futtergröße /
Chuck size
A B C D E h kg pro Stück /
kg per piece
80 32 11 28 6,0 6 4,0 0,1
100 42 15 31 6,0 6 6,0 0,1
125 51 20 40 8,0 8 7,0 0,3
160 70 20 53 8,0 8 8,0 0,5
200 85 25 54 9,0 10 8,0 0,8
250 105 28 63 11,0 12 9,0 1,4
315 125 32 73 12,7 12 10,0 1,9
400 145 36 92 15,0 14 12,0 2,5
500 180 40 100 16,0 14 14,2 5,0
630 225 50 110 16,0 14 14,2 8,4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
