3-jaw scroll chuck Bison type 3504-100 mm

€507.75 *
€604.22 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353504520100
  • 84662091
  • 2,8 kg
  • 0
3-jaw scroll chuck Bison - plain back mounting DIN 6350  - type 3504  Ø 100 mm... more
Product information "3-jaw scroll chuck Bison type 3504-100 mm"

3-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3504 Ø 100 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Type: 3-jaw lathe chucks
Ø : 100 mm
DIN: 6350
Jaws: one-piece jaws
Material: Steel
Make: Bison
Related links to "3-jaw scroll chuck Bison type 3504-100 mm"
A B B1 C D H7 E F G J L kg 80 44,0... more

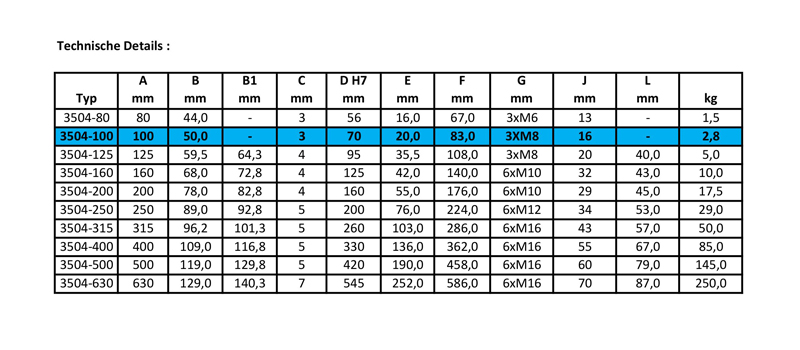

A B B1 C D H7 E F G J L kg
80 44,0 - 3 56 16,0 67,0 3xM6 13 - 1,5
100 50,0 - 3 70 20,0 83,0 3xM8 16 - 2,8
125 59,5 64,3 4 95 35,5 108,0 3xM8 20 40,0 5,0
160 68,0 72,8 4 125 42,0 140,0 6xM10 32 43,0 10,0
200 78,0 82,8 4 160 55,0 176,0 6xM10 29 45,0 17,5
250 89,0 92,8 5 200 76,0 224,0 6xM12 34 53,0 29,0
315 96,2 101,3 5 260 103,0 286,0 6xM16 43 57,0 50,0
400 109,0 116,8 5 330 136,0 362,0 6xM16 55 67,0 85,0
500 119,0 129,8 5 420 190,0 458,0 6xM16 60 79,0 145,0
630 129,0 140,3 7 545 252,0 586,0 6xM16 70 87,0 250,0

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
