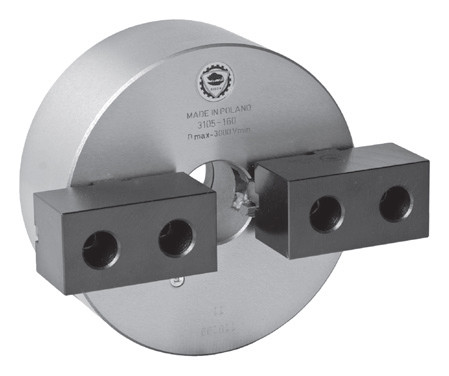

2-jaw scroll chuck DIN 6350 Bison type 3105-200

Preview: Zweibacken-Drehfutter DIN 6350 Typ 3105-200 Preview: Zeichnung Zweibacken-Drehfutter DIN 6350 Typ 3105-200
Zweibacken-Drehfutter DIN 6350 Typ 3105-200

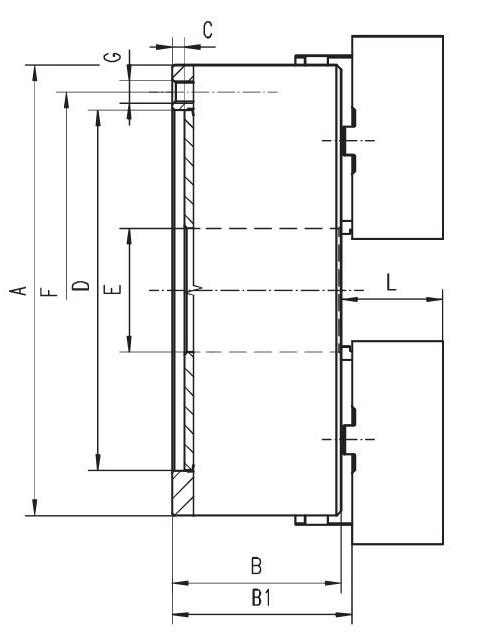

Zeichnung Zweibacken-Drehfutter DIN 6350 Typ 3105-200

€559.50 *
€665.81 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353105050500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 17 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
2-jaw scroll chuck DIN 6350 Bison - plain back mounting DIN 6350  - type 3105 ... more
Close menu
Product information "2-jaw scroll chuck DIN 6350 Bison type 3105-200"

2-jaw scroll chuck DIN 6350 Bison

- plain back mounting DIN 6350
- type 3105 Ø 200 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: cast iron
- 2-piece jaws
- incl. 1 set of soft top jaws, 1 set of hard master jaws
  and 1 wrench

Related links to "2-jaw scroll chuck DIN 6350 Bison type 3105-200"

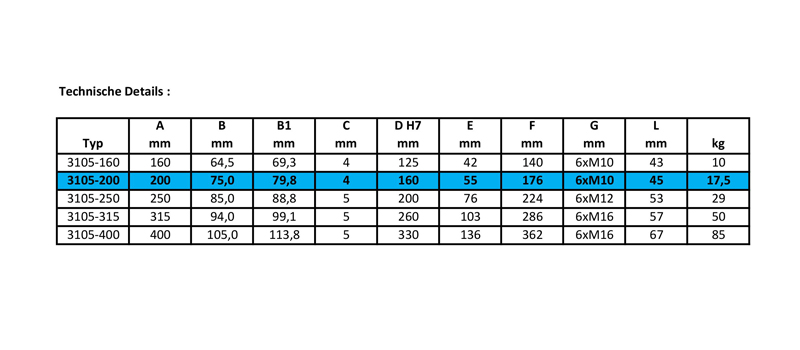

Technical data
    more
Zurück

353105050500-3105-200
