Hard top jaws for independent chucks Ø 250 mm
Product number:
398573630200
Customs tariff number
84662091
European Article Number
Weight
2,8 kg
Stock:
0
Related links:
Request Item
Product information "Hard top jaws for independent chucks Ø 250 mm"
Hard top jaws for Bison
independent chucks Ø 250 mm
- material: steel
- 4 pieces/set
| Jaws: | Hard top jaws |
|---|---|
| Jaws for Ø: | 250 mm |
| Make: | Bison |

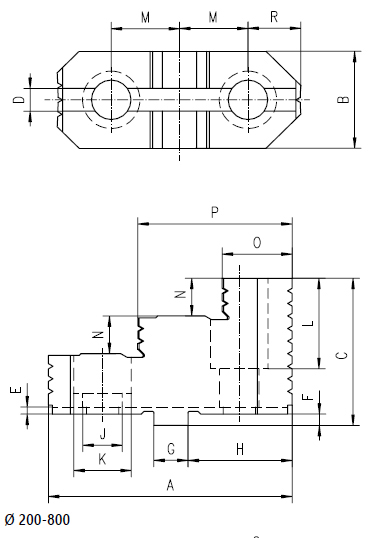

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | R | kg pro Stück / kg per piece |
| 200 | 82,0 | 34 | 43,5 | 7,95 | 4 | 3,2 | 12,69 | 35,2 | 11 | 18 | 21,5 | 22,25 | 9,5 | 22,0 | 53,0 | 19,3 | 0,5 |
| 250 | 96,5 | 34 | 51,5 | 12,71 | 4 | 3,2 | 19,04 | 40,0 | 14 | 20 | 26,5 | 27,00 | 12,0 | 25,0 | 62,0 | 22,5 | 0,7 |
| 315 | 112,5 | 42 | 55,0 | 12,71 | 4 | 3,2 | 19,04 | 47,9 | 14 | 20 | 27,5 | 31,75 | 13,0 | 27,0 | 70,5 | 25,7 | 1,3 |
| 400 | 129,0 | 42 | 64,5 | 12,71 | 4 | 6,3 | 19,04 | 57,4 | 18 | 26 | 32,0 | 38,10 | 13,5 | 26,5 | 79,0 | 28,8 | 2,1 |
| 500 / 630 | 136,0 | 54 | 82,0 | 12,71 | 4 | 6,3 | 19,04 | 58,0 | 22 | 33 | 43,0 | 38,10 | 21,0 | 37,5 | 87,0 | 29,4 | 3,0 |
| 800 | 136,0 | 72 | 88,0 | 12,71 | 4 | 6,3 | 19,04 | 58,0 | 22 | 33 | 46,0 | 38,10 | 24,0 | 40,0 | 98,0 | 29,4 | 4,2 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
