Soft top jaws for six-jaw lathe chucks Ø 125 mm

Preview: Soft top jaws for six-jaw lathe chucks Ø 125 mm Preview: Drawing 1 Soft top jaws for six-jaw lathe chucks Ø 125 mm Preview: Drawing 2 Soft top jaws for six-jaw lathe chucks Ø 125 mm

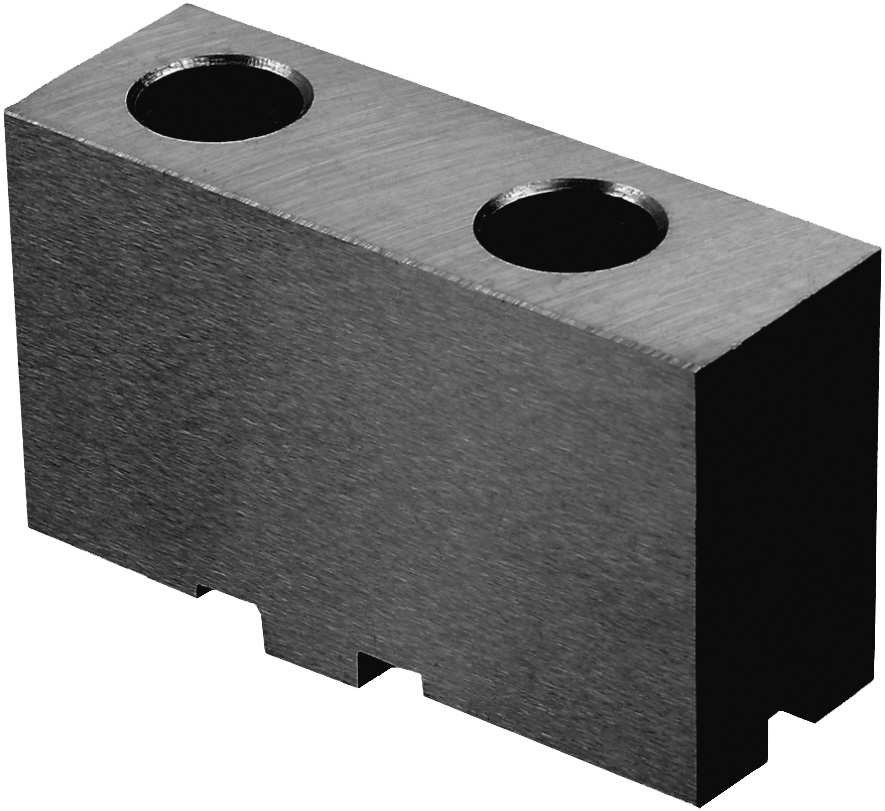

Soft top jaws for six-jaw lathe chucks Ø 125 mm

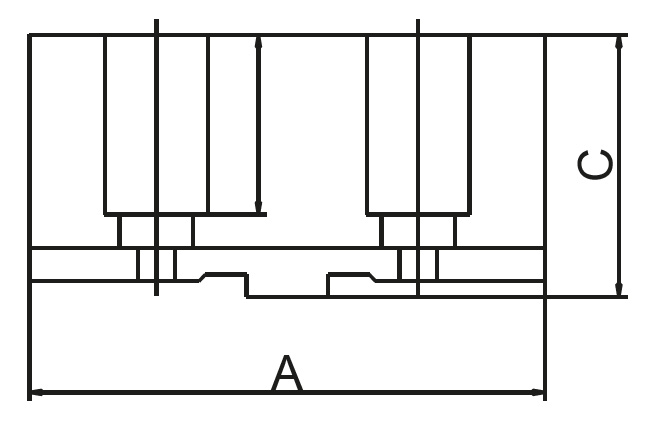

Drawing 1 Soft top jaws for six-jaw lathe chucks Ø 125 mm

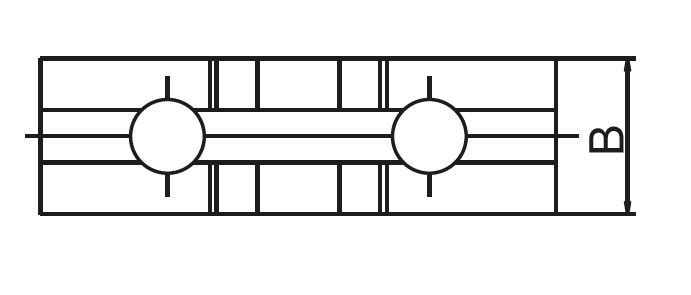

Drawing 2 Soft top jaws for six-jaw lathe chucks Ø 125 mm

€82.58 *
€98.27 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-WAB38-125
  • Customs tariff number: 8466 2091
  • European article number: 4049794045466
  • Weight: 1,65 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Soft top jaws for lathe chucks Ø 125 mm material C45, 6 pieces per set more
Close menu
Product information "Soft top jaws for six-jaw lathe chucks Ø 125 mm"

Soft top jaws for lathe chucks Ø 125 mm

material C45,
6 pieces per set

Related links to "Soft top jaws for six-jaw lathe chucks Ø 125 mm"
Technical data
Für / for Ø mm A mm B mm C mm 125 64... more
Zurück
Für / for
Ø mm		 A
mm		 B
mm		 C
mm
125 64 22 38,5
160 78 25 41,5
200 90 27 43,5
250 106 32 51,5
315 120 37 55
400 140 42 64,5
500 140 42 74,5
630 160 50 80

Preis pro Satz / Price per set

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
