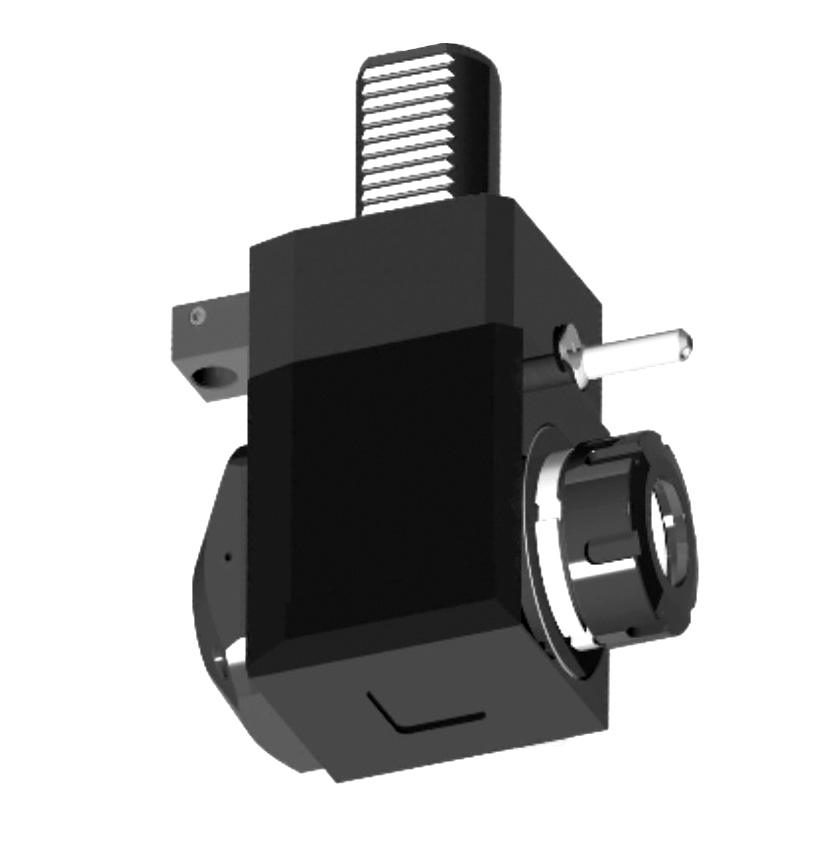

Driven tool VDI 30 ER 25, without IC, short

€1,690.70 *
€2,011.93 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 47-80-WKR-30-25
  • 8466 1031
  • 4049794057780
  • 2,9 kg
  • 0
Driven tool, DIN 5480, angular 90° - for SAUTER turrets - coolant pressure up to 20 bar -... more
Product information "Driven tool VDI 30 ER 25, without IC, short"

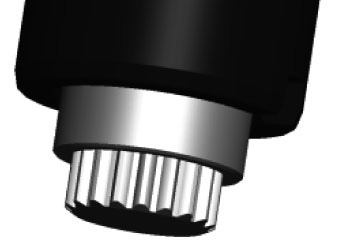

Driven tool, DIN 5480, angular 90°

- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

- VDI 30
- ER 25
- short
- without internal cooling

Related links to "Driven tool VDI 30 ER 25, without IC, short"

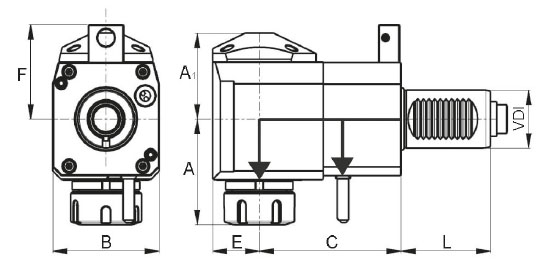

VDI SZ / Collet IK / IC Richtung / Direction C mm... more
VDI SZ /
Collet
IK /
IC
Richtung /
Direction
C
mm
A1
mm
A
mm
L
mm
F
mm
E
mm
B
mm
Übersetzung /
Ratio
Max. Drehmoment /
Max. torque Nm
Drehzahl /
Speed min-1
30 ER 25    - rechts/right 55 48 63 55 56 26 64  1 : 1 28 6000
30 ER 25    ✓ rechts/right 55 51 63 55 56 26 64  1 : 1 28 6000
30 ER 25  - rechts/right 85 48 63 55 56 26 64  1 : 1 28 6000
30 ER 25    ✓ rechts/right 85 51 63 55 56 26 64  1 : 1 28 6000
40 ER 32  - rechts/right 80 59 74 63 65 33 75  1 : 1 50 6000
40 ER 32    ✓ rechts/right 80 62 74 63 65 33 75  1 : 1 50 6000
40 ER 32  - rechts/right 100 59 74 63 65 33 75  1 : 1 50 6000
40 ER 32    ✓ rechts/right 100 62 74 63 65 33 75  1 : 1 50 6000

Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar /
Driven tools with VDI 50 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
