Parallels in wooden case 100/4 mm

€93.38 *
€111.12 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 13-MLRD-100/4
  • 9017 3000
  • 4260073577939
  • 2 kg
  • 20
Parallels in wooden case Type MLRD - Material: Alloyed tool steel 53 - 57 HRC -... more
Product information "Parallels in wooden case 100/4 mm"

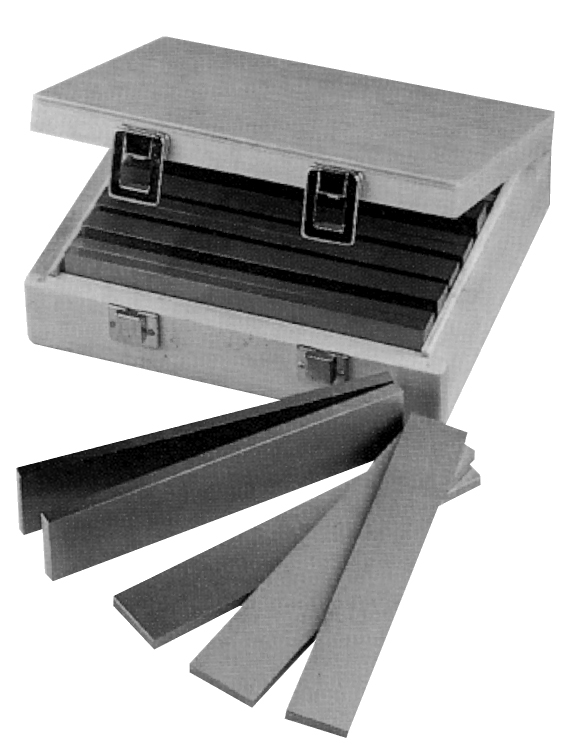

Parallels in wooden case
Type MLRD

- Material: Alloyed tool steel 53 - 57 HRC
- Tolerance:
  A = 0,01 mm
  B = 3 - 6 mm 0,005 mm
  B = 6 - 10 mm 0,006 mm
  B = 10 - 18 mm 0,008 mm
  B = 18 - 30 mm 0,009 mm
  B = 30 - 50 mm 0,01 mm
- in wooden case

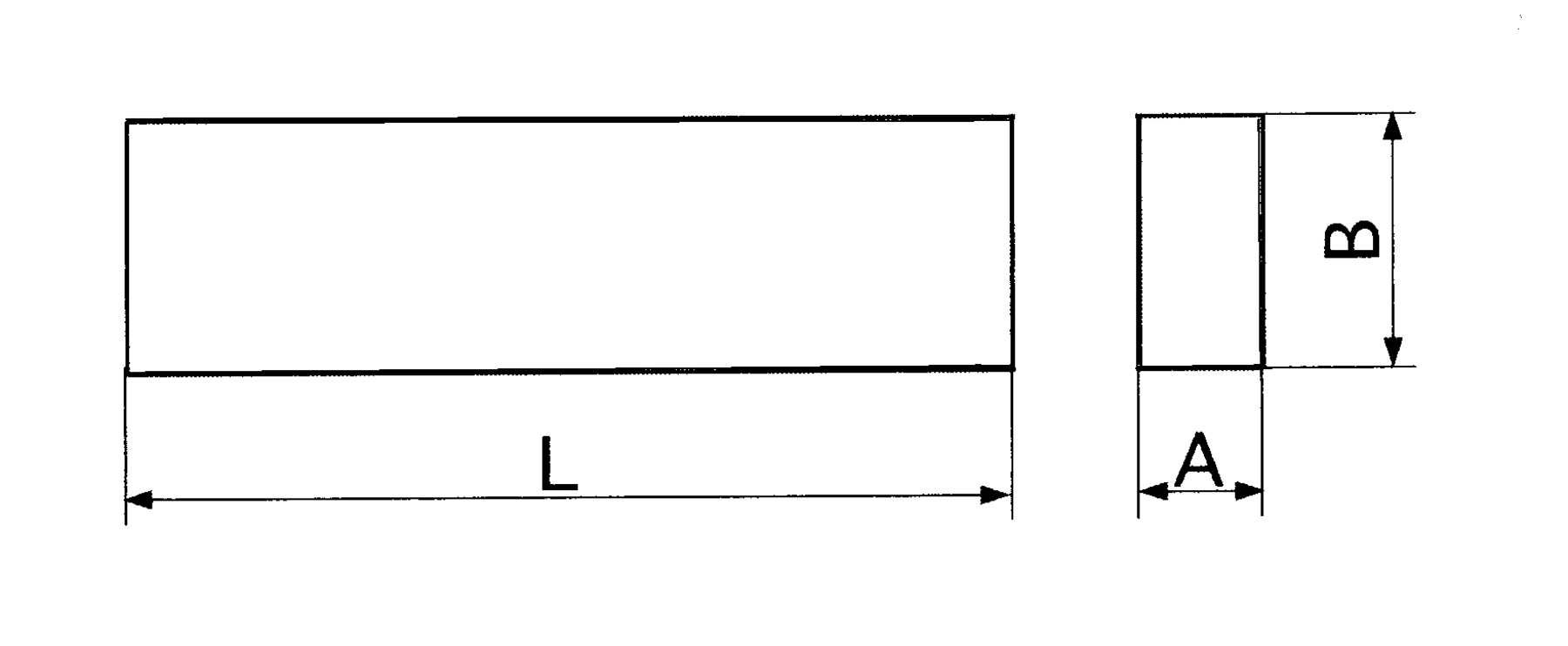

Size (L x A): 100 x 4 mm

Related links to "Parallels in wooden case 100/4 mm"
L mm A mm B mm Menge / Quantity Paare / Pairs 100 4... more
L
mm
A
mm
B
mm
Menge /
Quantity
Paare /
Pairs
100 4 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 je 2 / 2 each 9
120 8 12 / 17 / 22 / 25 / 28 / 32 / 36 / 38 je 2 / 2 each 8
160 4 10 / 14 / 18 / 22 / 26 / 30 / 34 / 38 / 42 je 2 / 2 each 9
160 8 12 / 17 / 22 / 25 / 28 / 32 / 36 / 38 je 2 / 2 each 8
200 8 17 / 22 / 26 / 28 / 32 / 36 / 38 / 42 je 2 / 2 each 8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
