€175.46 *
€208.80 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: WAT-D160/4-ZGE
- Customs tariff number: 8466 2091
- European article number: 4049794671184
- Weight: 9 kg
- In stock: 8

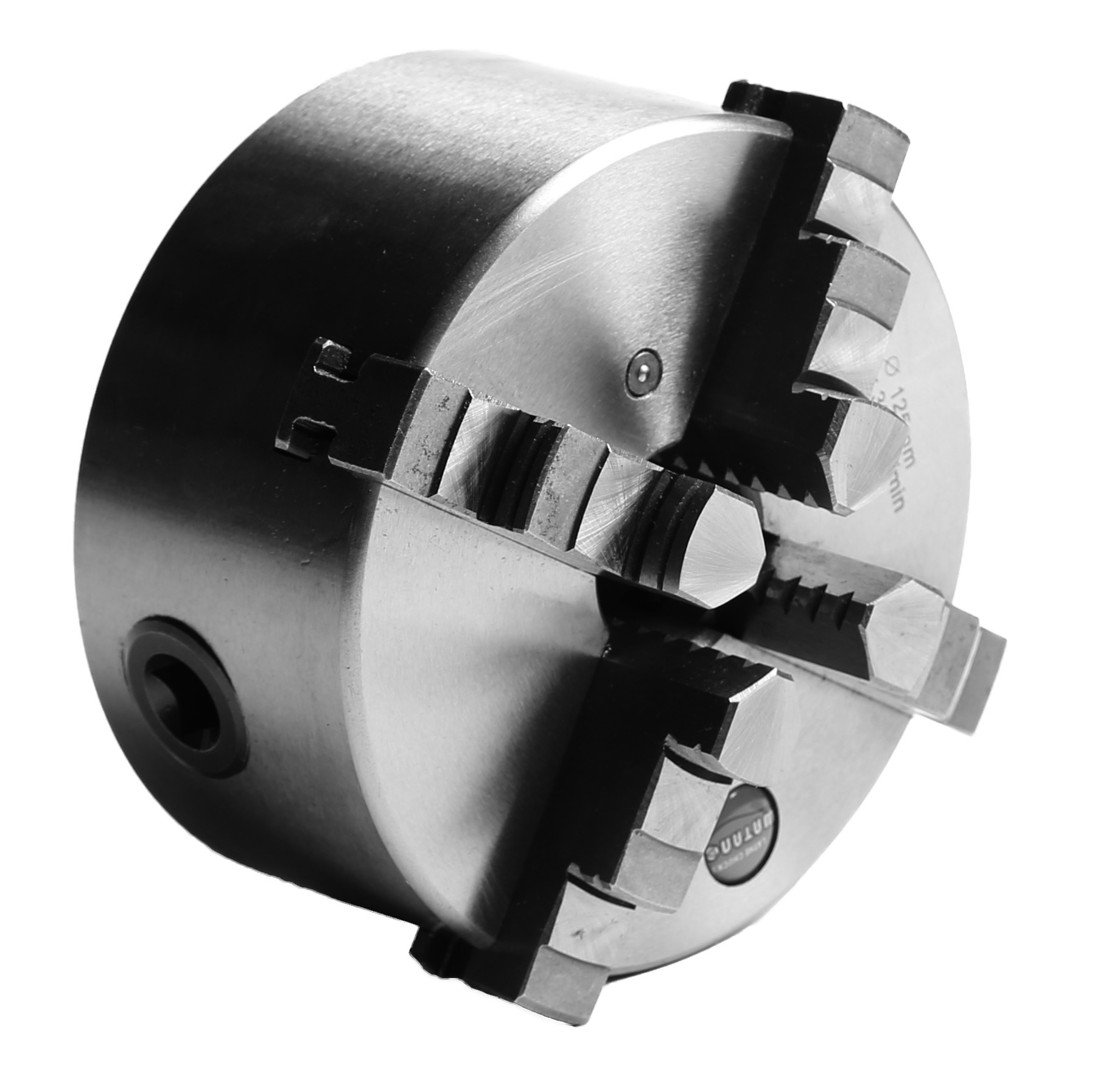

Four-jaw-lathe chuck Basic
- centre mount acc. to factory standard, one-piece jaws - chuck... more
Product information "Four-jaw-lathe chuck Basic Ø 160 mm"
Four-jaw-lathe chuck Basic
- centre mount acc. to factory standard, one-piece jaws
- chuck body made from cast iron
- self-centering

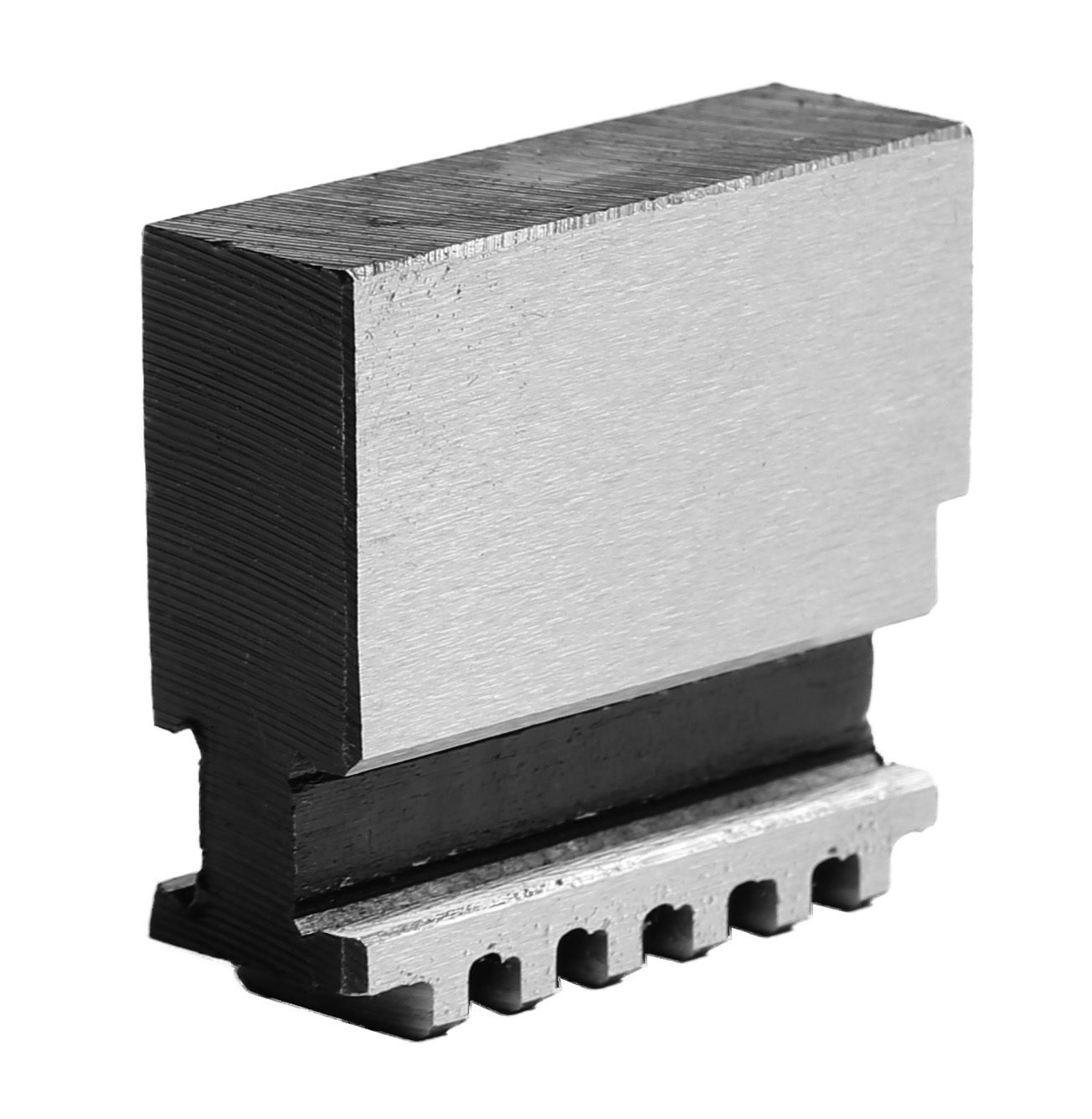

- inkl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws
Type: | 4-jaw lathe chucks |
Ø : | 160 mm |
DIN: | centre mount acc. to factory standard |
Jaws: | one-piece jaws |
Material: | Cast iron |
Make: | Basic |
Related links to "Four-jaw-lathe chuck Basic Ø 160 mm"

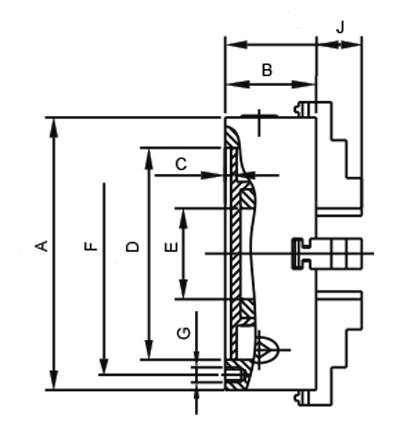

A (Ø) mm
D mm
F mm
E mm
J mm
B mm
C mm
G mm... more
A (Ø) mm |
D mm |
F mm |
E mm |
J mm |
B mm |
C mm |
G mm |
Rundlauf / Runout Ø |
RPM MAX min -1 |
kg |
80 | 55 | 66 | 16 | 16,5 | 50 | 4 | 3-M6 | 0,08 | 4000 | 2 |
100 | 72 | 84 | 22 | 21 | 53,5 | 3 | 3-M8 | 0,08 | 3500 | 3 |
125 | 95 | 108 | 30 | 26,5 | 58 | 4 | 3-M8 | 0,08 | 3000 | 5 |
160 | 130 | 142 | 45 | 29 | 65 | 5 | 3-M8 | 0,08 | 2500 | 9 |
200 | 165 | 180 | 65 | 34 | 75 | 5 | 3-M10 | 0,1 | 2000 | 16 |
250 | 206 | 226 | 80 | 40 | 80 | 5 | 3-M12 | 0,1 | 1600 | 28 |
315 | 260 | 285 | 100 | 57,5 | 90 | 6 | 3-M16 | 0,12 | 1200 | 47 |
400 | 340 | 368 | 130 | 73,5 | 100 | 6 | 3-M16 | 0,12 | 1000 | 85 |
500 | 440 | 465 | 210 | 87 | 115 | 6 | 3-M16 | 0,16 | 800 | 119 |
Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws |
||||||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
