3-jaw scroll chuck Bison type 3545-125-3

Preview: Dreibacken-Drehfutter Typ 3545-125-3 Preview: Zeichnung Dreibacken-Drehfutter Typ 3545-125-3

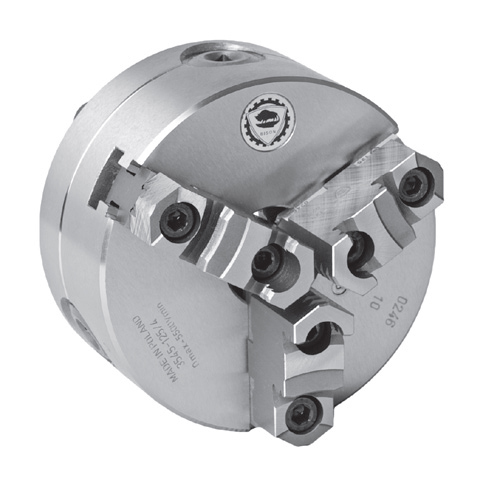

Dreibacken-Drehfutter Typ 3545-125-3

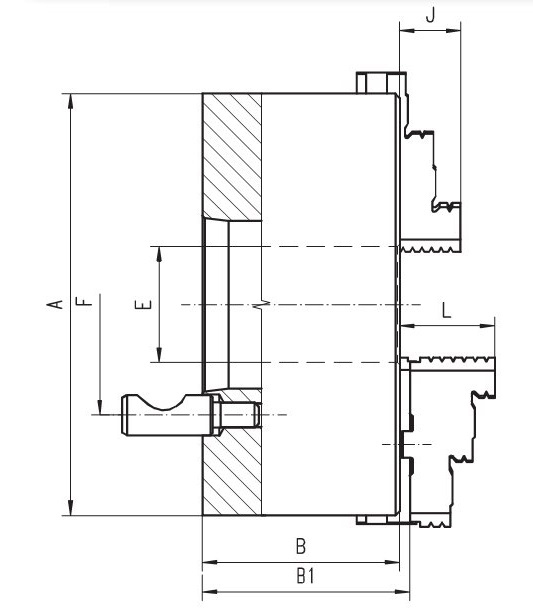

Zeichnung Dreibacken-Drehfutter Typ 3545-125-3

€778.50 *
€926.42 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353545570800
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 6 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
3-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3545  Ø... more
Close menu
Product information "3-jaw scroll chuck Bison type 3545-125-3"

3-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3545 Ø 125 mm, taper 3
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- 2-piece jaws
- incl. 1 set of hard top jaws, 1 set of hard master jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3545-125-3"

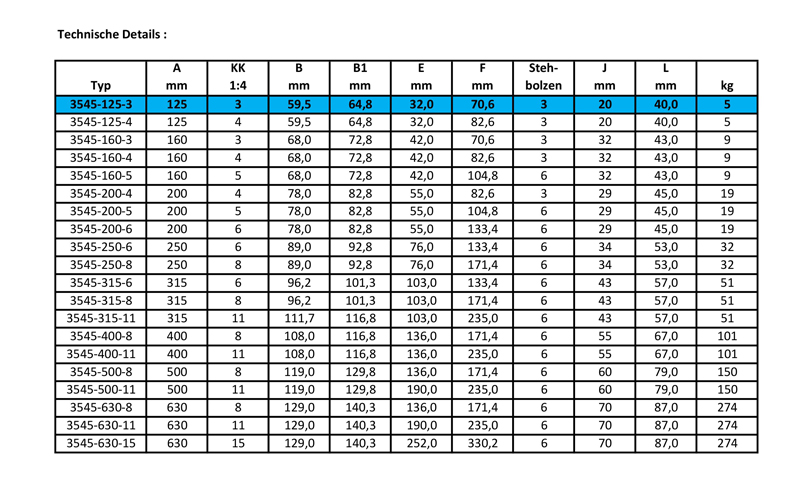

Technical data
more
Zurück

353545570800-3545-125-3

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "3-jaw scroll chuck Bison type 3545-125-3"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.
