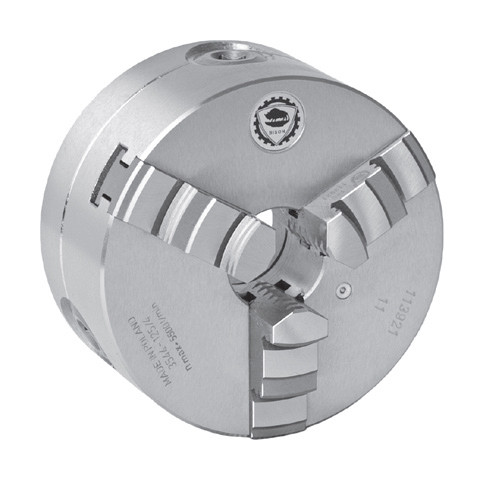

3-jaw scroll chuck Bison type 3544-125-3

Preview: Dreibacken-Drehfutter Typ 3544-125-3 Preview: Zeichnung Dreibacken-Drehfutter Typ 3544-125-3
Dreibacken-Drehfutter Typ 3544-125-3

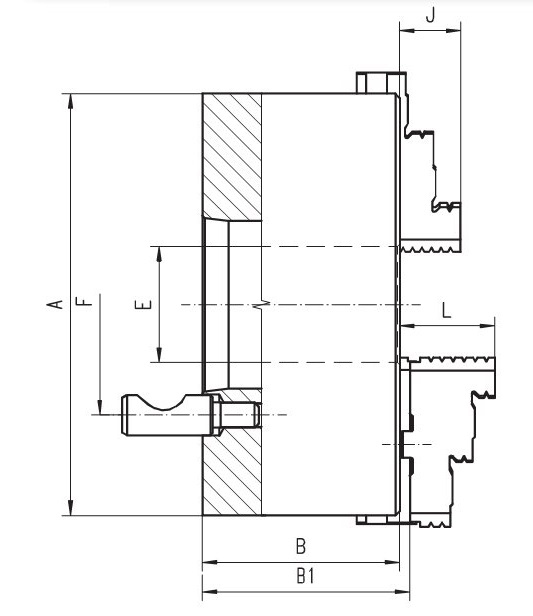

Zeichnung Dreibacken-Drehfutter Typ 3544-125-3

€719.25 *
€855.91 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353544570000
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 7 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
3-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3544  Ø... more
Close menu
Product information "3-jaw scroll chuck Bison type 3544-125-3"

3-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3544 Ø 125 mm, taper 3
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3544-125-3"
Technical data
more
Zurück

353544570000-3544-125-3
