3-jaw scroll chuck Bison 3234-160-4
Product information "3-jaw scroll chuck Bison 3234-160-4"
3-jaw scroll chuck Bison
- type C mounting (BAYONET) DIN 5527
- type 3234 Ø 160 mm, taper 4
- ground working surfaces
- material of body: cast iron
- solid jaws

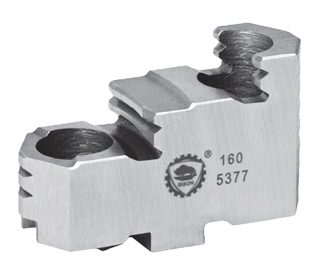

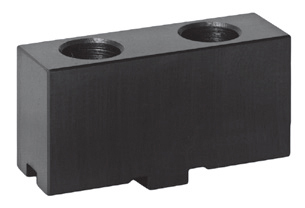

- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
and 1 wrench
| DIN: | 55027 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Bison |
| Material: | Cast iron |
| Taper: | 4 |
| Type: | 3-jaw lathe chucks |
| Ø : | 160 mm |

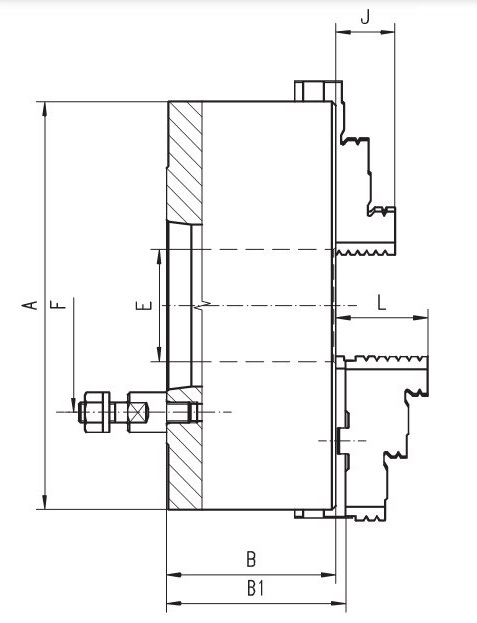

Technical Data
| A | KK 1:4 / ST 1:4 |
B | B1 | E | F | Stehbolzen / Stud bolts |
J | L | kg |
| 125 | 3 | 70,0 | 74,8 | 32 | 75,0 | 3 | 20 | 40 | 5 |
| 125 | 4 | 70,0 | 74,8 | 32 | 85,0 | 3 | 20 | 40 | 5 |
| 160 | 4 | 81,5 | 86,3 | 42 | 85,0 | 3 | 32 | 43 | 9 |
| 160 | 5 | 81,5 | 86,3 | 42 | 104,8 | 4 | 32 | 43 | 9 |
| 200 | 5 | 91,0 | 95,8 | 55 | 104,8 | 4 | 29 | 45 | 19 |
| 200 | 6 | 103,5 | 107,3 | 55 | 133,4 | 4 | 34 | 53 | 32 |
| 250 | 6 | 103,5 | 107,3 | 76 | 133,4 | 4 | 34 | 53 | 32 |
| 250 | 8 | 103,5 | 107,3 | 76 | 171,4 | 4 | 34 | 53 | 32 |
| 315 | 6 | 117,7 | 122,8 | 103 | 133,4 | 4 | 43 | 57 | 51 |
| 315 | 8 | 117,7 | 122,8 | 103 | 171,4 | 4 | 43 | 57 | 51 |
| 315 | 11 | 140,0 | 145,0 | 103 | 235,0 | 6 | 43 | 57 | 51 |
| 400 | 8 | 128,5 | 137,3 | 136 | 171,4 | 4 | 55 | 67 | 101 |
| 400 | 11 | 128,5 | 137,3 | 136 | 235,0 | 6 | 55 | 67 | 101 |
| 500 | 8 | 146,0 | 156,8 | 136 | 171,4 | 4 | 60 | 79 | 150 |
| 500 | 11 | 146,0 | 156,8 | 190 | 235,0 | 6 | 60 | 79 | 150 |
| 630 | 11 | 165,0 | 176,3 | 190 | 235,0 | 6 | 70 | 87 | 274 |
| 630 | 15 | 165,0 | 176,3 | 252 | 330,2 | 6 | 70 | 87 | 274 |
| Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
