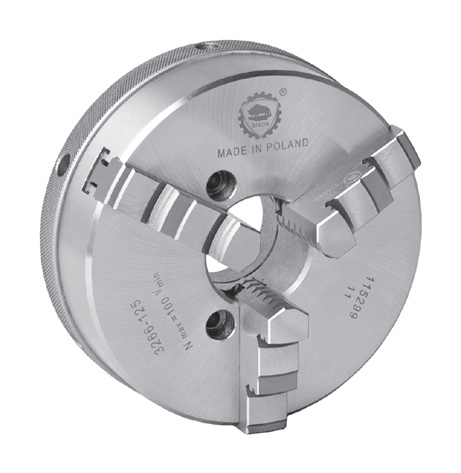

3-jaw scroll chuck Bison type 3266-100

€791.25 *
€941.59 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353266020800
  • 84662091
  • 3,2 kg
  • 0
3-jaw scroll chuck Bison - 3-jaw scroll chuck Bison for sharpening drills - type 3266 Ø... more
Product information "3-jaw scroll chuck Bison type 3266-100"

3-jaw scroll chuck Bison

- 3-jaw scroll chuck Bison for sharpening drills
- type 3266 Ø 100 mm
- lever scroll is specially designed for grinding twist drills
  and other cutting tools
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 operating lever

Related links to "3-jaw scroll chuck Bison type 3266-100"

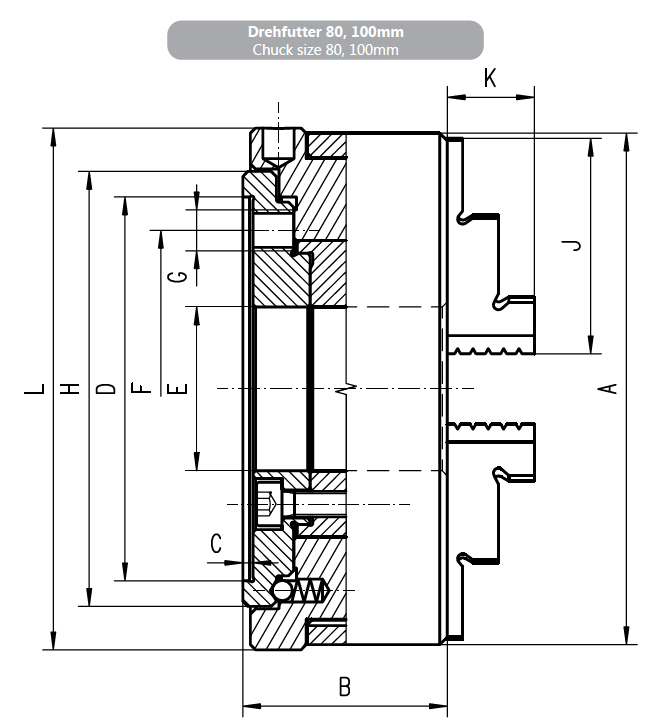

A B C D E F G H J K L Max. U/min. / Max. rpm... more
A B C D E F G H J K L Max. U/min. /
Max. rpm
Länge des Bedienschlüssels mm /
Length of the operating lever mm
kg
80 35 1,5 48,0 24 39 3xM6 52 33 13 82 100 100 1,1
100 40 2,0 75,0 32 45 3xM6 85 42 17 102 100 125 3,2
125 48 8,0 70,0 38 56 3xM6 83 51 20 129 100 160 4,0
160 52 8,0 78,5 52 65 3xM6 96 70 33 164 100 200 7,3
200 66 13,0 115,0 64 84 3xM8 147 85 30 205 100 200 13,3

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Bedienschlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 operating lever

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
