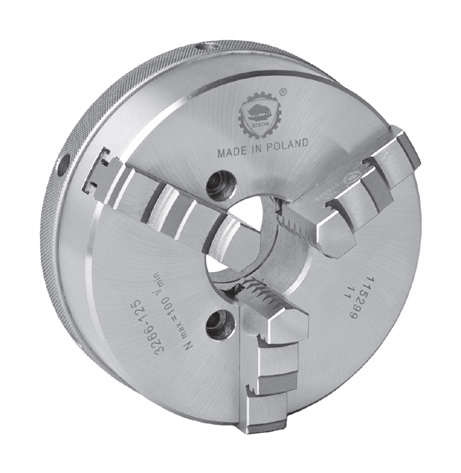

Product information "3-jaw scroll chuck Bison type 3266-160"
3-jaw scroll chuck Bison
- 3-jaw scroll chuck Bison for sharpening drills - type 3266 Ø 160 mm - lever scroll is specially designed for grinding twist drills and other cutting tools - fine adjustment to the required concentricity by means of 4 radially arranged adjusting screws - material of body: cast iron - solid jaws - incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 operating lever
Type:
3-jaw lathe chucks
Ø :
160 mm
Jaws:
one-piece jaws
Material:
Cast iron
Make:
Bison

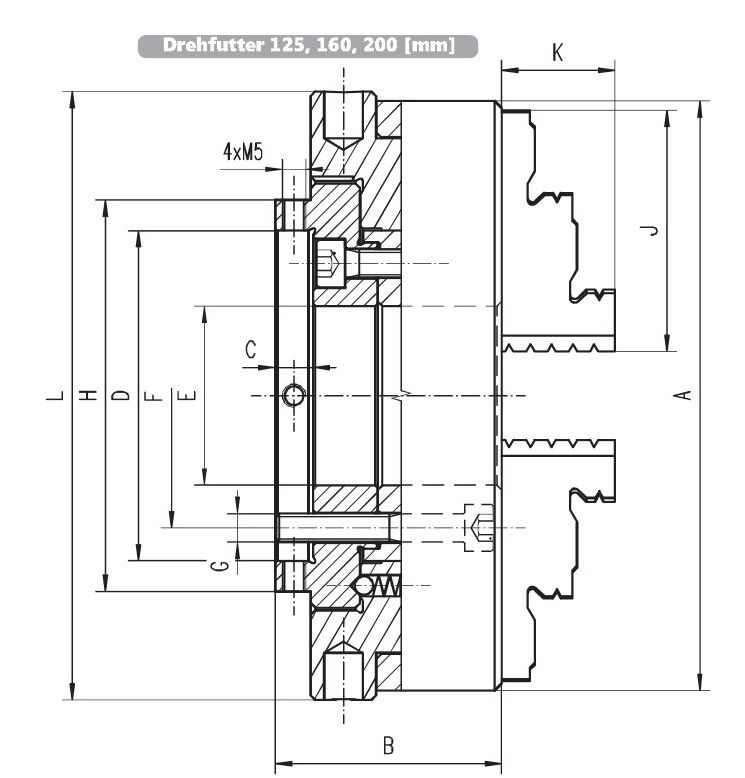

Related links to "3-jaw scroll chuck Bison type 3266-160"

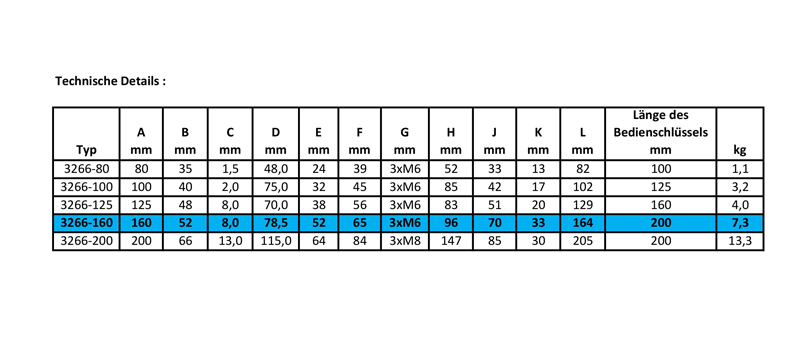

Länge des Bedienschlüssels mm / Length of the operating lever mm
kg
80
35
1,5
48,0
24
39
3xM6
52
33
13
82
100
100
1,1
100
40
2,0
75,0
32
45
3xM6
85
42
17
102
100
125
3,2
125
48
8,0
70,0
38
56
3xM6
83
51
20
129
100
160
4,0
160
52
8,0
78,5
52
65
3xM6
96
70
33
164
100
200
7,3
200
66
13,0
115,0
64
84
3xM8
147
85
30
205
100
200
13,3
Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Bedienschlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 operating lever
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
