- Order number: 354505030200
- Customs tariff number: 84662091
- European article number:
- Weight: 29 kg
- In stock: 0
3-jaw combination chuck (Wescott) Bison
- plain back mounting DIN 6351 - type 4505 Ø... more
Product information "3-jaw combination chuck (Wescott) type 4505-250"
3-jaw combination chuck (Wescott) Bison
- plain back mounting DIN 6351
- type 4505 Ø 250 mm
- individually adjustable jaws
- self-centering jaw clamping
- material of body: cast iron
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench
Type: | 3-jaw lathe chucks |
Ø : | 250 mm |
DIN: | 6351 |
Jaws: | one-piece jaws |
Material: | Cast iron |
Make: | Bison |
Related links to "3-jaw combination chuck (Wescott) type 4505-250"

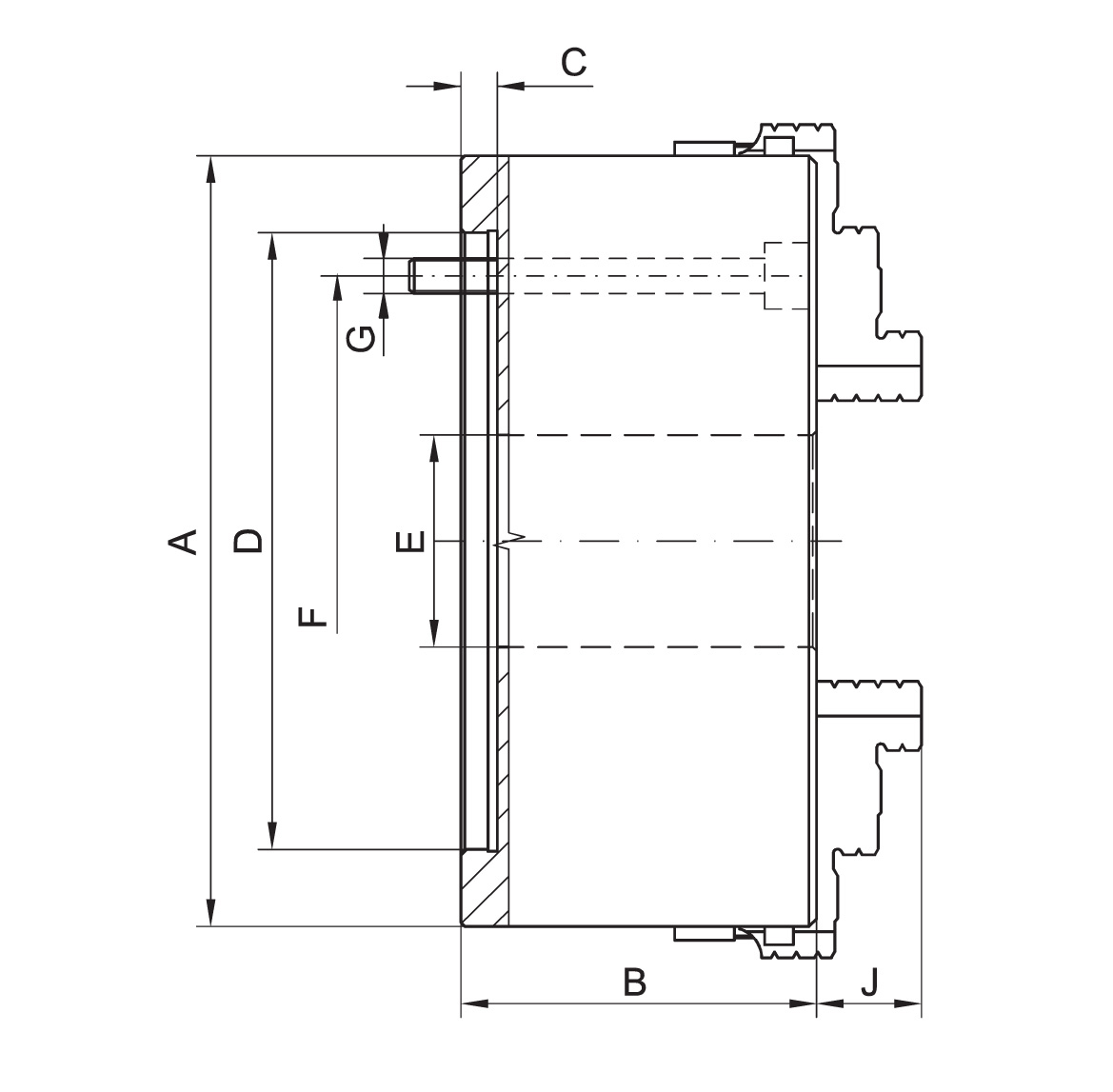

A
B
C
D
E
F
G
J
200
96
5
160
55... more

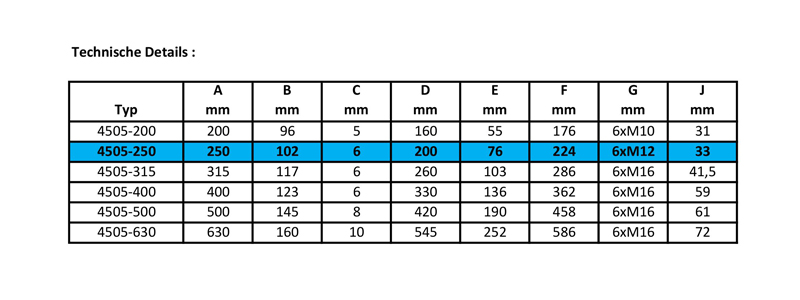

A | B | C | D | E | F | G | J |
200 | 96 | 5 | 160 | 55 | 176 | 6xM10 | 31,0 |
250 | 102 | 6 | 200 | 76 | 224 | 6xM12 | 33,0 |
315 | 117 | 6 | 260 | 103 | 286 | 6xM16 | 41,5 |
400 | 123 | 6 | 330 | 136 | 362 | 6xM16 | 59,0 |
500 | 145 | 8 | 420 | 190 | 458 | 6xM16 | 61,0 |
630 | 160 | 10 | 545 | 252 | 586 | 6xM16 | 72,0 |
Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel / Incl. 1 set of solid reversible jaws and 1 wrench |
|||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
