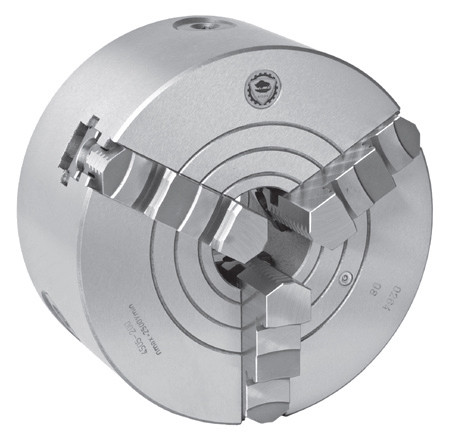

3-jaw combination chuck (Wescott) type 4505-630

€9,474.00 *
€11,274.06 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 354505070000
  • 84662091
  • 260 kg
  • 0
3-jaw combination chuck (Wescott) Bison - plain back mounting DIN 6351 - type 4505 Ø... more
Product information "3-jaw combination chuck (Wescott) type 4505-630"

3-jaw combination chuck (Wescott) Bison

- plain back mounting DIN 6351
- type 4505 Ø 630 mm
- individually adjustable jaws
- self-centering jaw clamping
- material of body: cast iron
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

Related links to "3-jaw combination chuck (Wescott) type 4505-630"

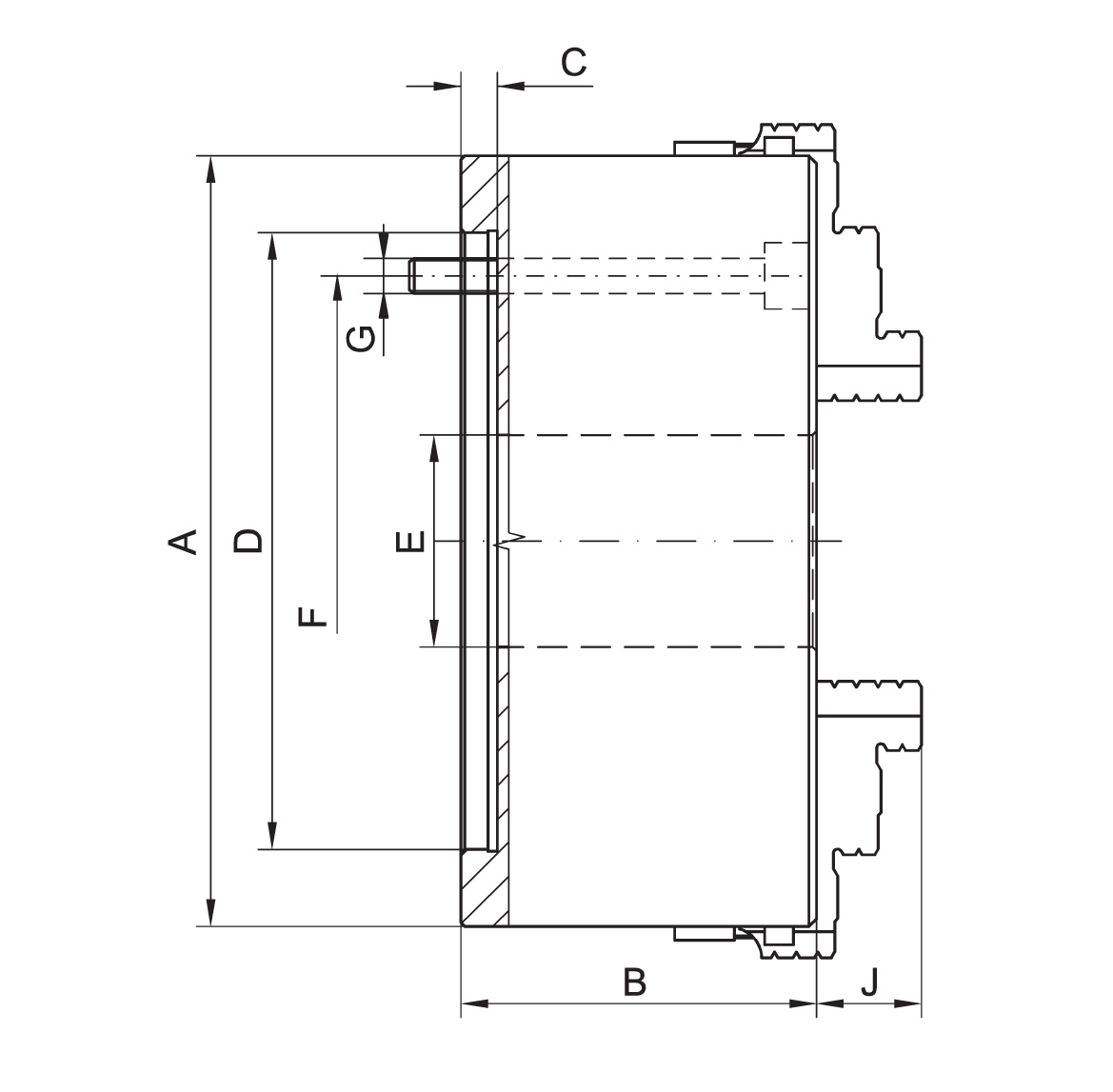

A B C D E F G J 200 96 5 160 55 176 6xM10 31,0 250... more
A B C D E F G J
200 96 5 160 55 176 6xM10 31,0
250 102 6 200 76 224 6xM12 33,0
315 117 6 260 103 286 6xM16 41,5
400 123 6 330 136 362 6xM16 59,0
500 145 8 420 190 458 6xM16 61,0
630 160 10 545 252 586 6xM16 72,0

Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel /
Incl. 1 set of solid reversible jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
