Soft solid jaws for Bison Wescott Ø 630 mm

€557.25 *
€663.13 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398575630900
  • 84662091
  • 13,5 kg
  • 0
Soft solid jaws for Bison 3-jaw combination chucks (Wescott) Ø 630 mm - material: steel -... more
Product information "Soft solid jaws for Bison Wescott Ø 630 mm"

Soft solid jaws for Bison
3-jaw combination chucks (Wescott) Ø 630 mm

- material: steel
- 3 pieces/set

Related links to "Soft solid jaws for Bison Wescott Ø 630 mm"

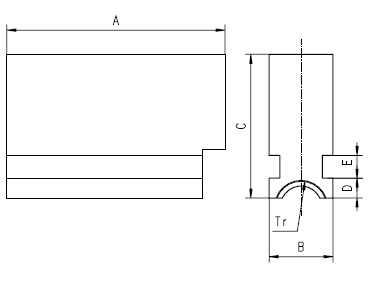

Futtergröße / Chuck size A B C D E G LH Gewinde / LH Thread H1 H kg... more
Futtergröße /
Chuck size
A B C D E G LH Gewinde /
LH Thread
H1 H kg pro Stück /
kg per piece
200 85 25 58 11,0 10 12 Tr 18 x 2 25,0 56,0 0,6
250 91 28 61 10,0 10 14 Tr 18 x 2 26,5 60,0 0,8
315 125 32 73 13,5 12 18 Tr 24 x 3 27,0 76,0 1,6
400 145 36 90 12,0 14 22 Tr 24 x 3 35,0 98,2 1,8
500 180 40 100 15,0 14 26 Tr 26 x 3 49,7 119,3 3,9
630 225 50 108 14,0 14 28 Tr 26 x 3 65,0 148,0 4,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
