Self-centering wedge bar chuck type 3474-160

Preview: Self-centering wedge bar chuck type 3474-160 Preview: Drawing 1 Self-centering wedge bar chuck type 3474-160 Preview: Drawing 2 Self-centering wedge bar chuck type 3474-160
Self-centering wedge bar chuck type 3474-160
Drawing 1 Self-centering wedge bar chuck type 3474-160
Drawing 2 Self-centering wedge bar chuck type 3474-160

€2,114.25 *
€2,515.96 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353474210100
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 12,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Self-centering wedge bar chuck Bison - 3-jaw chuck type  3474  Ø 160 mm -... more
Close menu
Product information "Self-centering wedge bar chuck type 3474-160"

Self-centering wedge bar chuck Bison

- 3-jaw chuck type 3474 Ø 160 mm
- serration according to Reishauer System (RHU)
- jaw locking system
- hardened and ground jaw guides
- material of body: steel
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

Related links to "Self-centering wedge bar chuck type 3474-160"

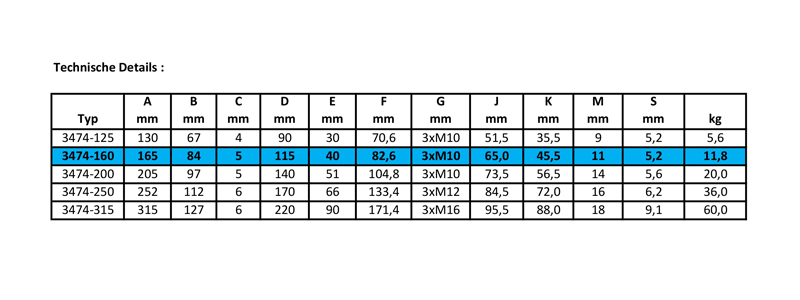

Technical data
A B C D E F G J K M S X kg 130... more
Zurück
A B C D E F G J K M S X kg
130 67 4 90 30 70,6 3xM10 51,5 35,5 9 5,2 13 5,6
165 84 5 115 40 82,6 3xM10 65,0 45,5 11 5,2 14 11,8
205 97 5 140 51 104,8 3xM10 73,5 56,5 14 5,6 17 20,0
252 112 6 170 66 133,4 3xM12 84,5 72,0 16 6,2 18 36,0
315 127 6 220 90 171,4 3xM16 95,5 88,0 18 9,1 23 60,0
400 144 6 300 110 235,0 6xM20 112,5 110,0 18 12,0 30 107,0
500 144 6 300 190 235,0 6xM20 112,5 170,0 18 12,0 33 163,0

Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel /
Incl. 1 set of solid reversible jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
