Self-centering wedge bar chuck type 3474-125

Preview: Dreibacken-Keilstangenfutter Typ 3474-125 RHU Preview: Zeichnung Dreibacken-Keilstangenfutter Typ 3474-125 RHU
Dreibacken-Keilstangenfutter Typ 3474-125 RHU

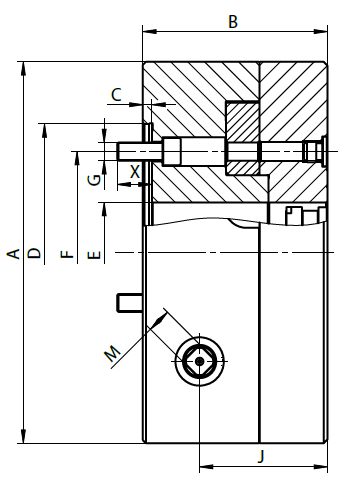

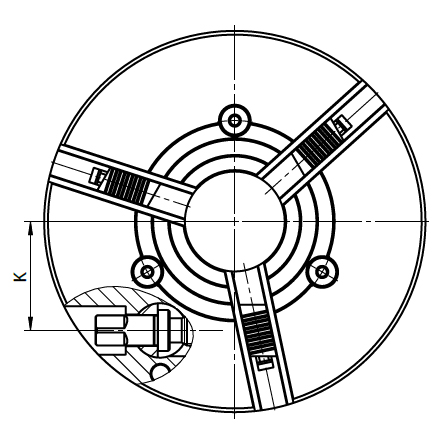

Zeichnung Dreibacken-Keilstangenfutter Typ 3474-125 RHU

€1,628.25 *
€1,937.62 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353474200000
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 7 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Self-centering wedge bar chuck Bison - 3-jaw chuck type  3474  Ø 125 mm -... more
Close menu
Product information "Self-centering wedge bar chuck type 3474-125"

Self-centering wedge bar chuck Bison

- 3-jaw chuck type 3474 Ø 125 mm
- serration according to Reishauer System (RHU)
- jaw locking system
- hardened and ground jaw guides
- flexible mounting system: mounting from the back or
  front of the chuck by using an adapter plate
- material of body: steel
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

Related links to "Self-centering wedge bar chuck type 3474-125"

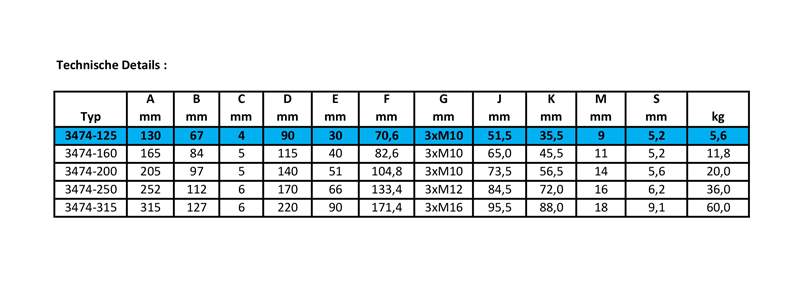

Technical data
more
Zurück

353474200000-3474-1255652ea340c36b

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Self-centering wedge bar chuck type 3474-125"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.
