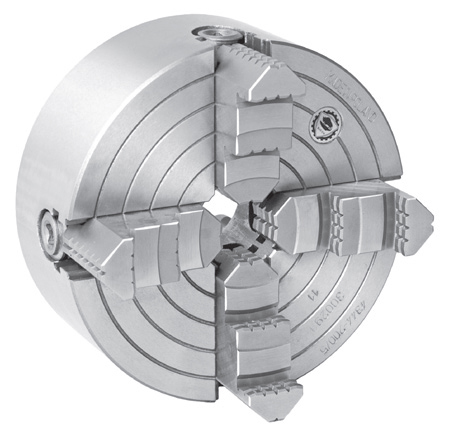

Independent chuck Bison type 4344-500-8

Preview: Independent chuck Bison type 4344-500-8 Preview: Drawing Independent chuck Bison type 4344-500-8
Independent chuck Bison type 4344-500-8

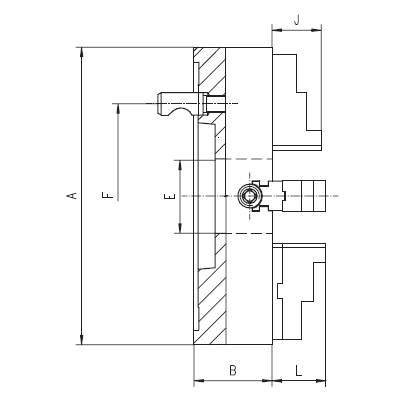

Drawing Independent chuck Bison type 4344-500-8

€3,151.50 *
€3,750.29 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 354344200700
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 95,5 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Independent chuck  Bison 4344-500-8 - DIN 55029, type D mounting (CAMLOCK) - type... more
Close menu
Product information "Independent chuck Bison type 4344-500-8"

Independent chuck Bison 4344-500-8

- DIN 55029, type D mounting (CAMLOCK)
- type 4344 Ø 500 mm, taper 8
- material of body: cast iron
- solid jaws
- with additional T-slots
- incl. 1 set of solid reversible jaws and 1 wrench

Taper: 8
Ø : 500 mm
DIN: 55029
Jaws: one-piece jaws
Material: Cast iron
Make: Bison
Related links to "Independent chuck Bison type 4344-500-8"

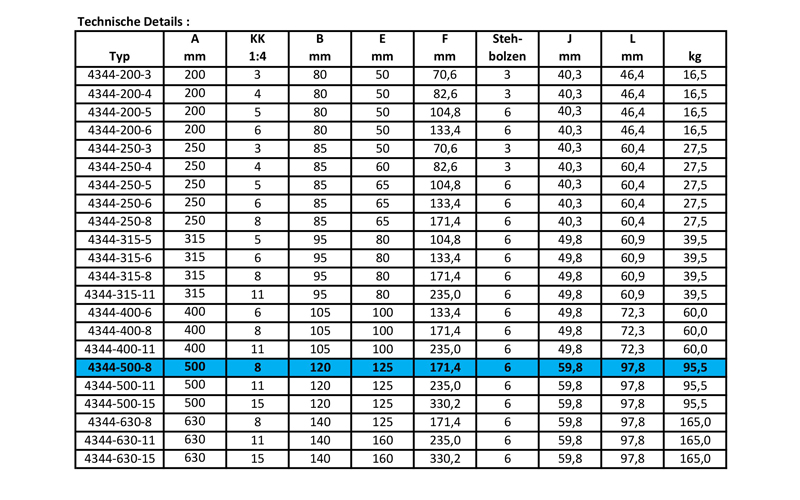

Technical data
A KK 1:4 / ST 1:4 B E F Stehbolzen / Stud bolts J L kg 200 4 80... more
Zurück
A KK 1:4 /
ST 1:4		 B E F Stehbolzen /
Stud bolts		 J L kg
200 4 80 50 82,6 3 40,3 46,4 16,5
200 6 80 50 133,4 6 40,3 46,4 16,5
250 6 85 65 133,4 6 40,3 60,4 27,5
250 8 85 65 171,4 6 40,3 60,4 27,5
315 6 95 80 133,4 6 49,8 60,9 39,5
315 8 95 80 171,4 6 49,8 60,9 39,5
400 8 105 100 171,4 6 49,8 72,3 60,0
400 11 105 100 235,0 6 49,8 72,3 60,0
500 8 120 125 171,4 6 59,8 97,8 95,5
500 11 120 125 235,0 6 59,8 97,8 95,5
630 8 140 125 171,4 6 59,8 97,8 165,0
630 11 140 160 235,0 6 59,8 97,8 165,0

Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel /
Incl. 1 set of solid reversible jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
