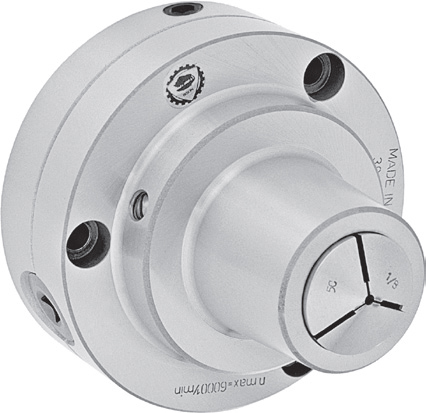

5C collet chuck Bison 3960-125

€581.25 *
€691.69 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353960030500
  • 84662091
  • 5,4 kg
  • -1
5C-collet chuck Bison 3960-125 - with fine adjustment - the wrench operated scroll provides... more
Product information "5C collet chuck Bison 3960-125"

5C-collet chuck Bison 3960-125

- with fine adjustment
- the wrench operated scroll provides for uniform
  and distortion free clamping of workpieces while
  simultaneously allowing for a fast collet exchange
- designed for use with 5C collets (385E) and can be
  used for turning, facing, boring, grinding and
  milling operations
- type 3960 allows for fine adjustment to the required
  concentricity by means of 4 radially arranged
  adjusting srews
- material of body: steel
- incl. 1 wrench
- collet 5C is not included

Type: 5C collet chucks
Ø : 125 mm
for collets: 5C
Make: Bison
Related links to "5C collet chuck Bison 3960-125"

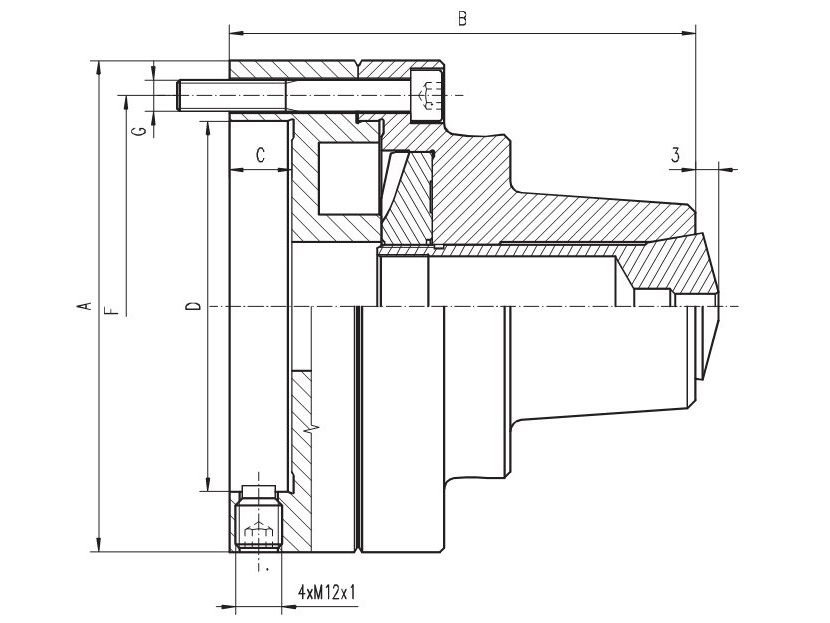

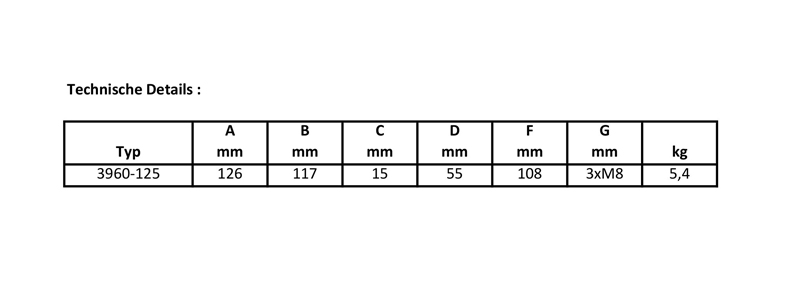

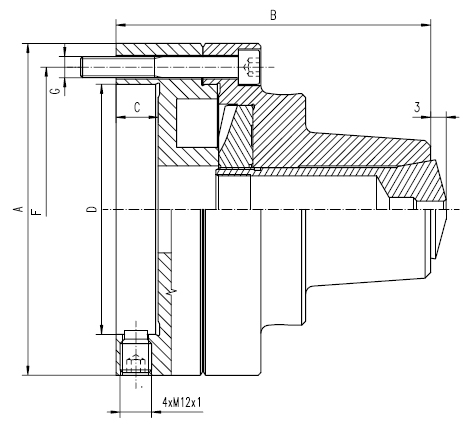

Typ / Type A B C D F G kg    ... more
Typ /
Type
A B C D F G kg

3960-125 126 117 15 55 108 3xM8 5,4

Inkl. 1 Schlüssel /
Incl. 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
