Independent chuck Bison type 4344-200-4

€850.50 *
€1,012.10 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 354344070800
  • 84662091
  • 16,5 kg
  • 0
Independent chuck  Bison 4344-200-4 - DIN 55029, type D mounting (CAMLOCK) - type... more
Product information "Independent chuck Bison type 4344-200-4"

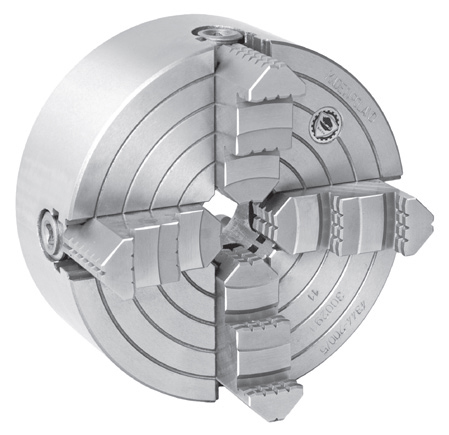

Independent chuck Bison 4344-200-4

- DIN 55029, type D mounting (CAMLOCK)
- type 4344 Ø 200 mm, taper 4
- material of body: cast iron
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

Taper: 4
Ø : 200 mm
DIN: 55029
Jaws: one-piece jaws
Material: Cast iron
Make: Bison
Related links to "Independent chuck Bison type 4344-200-4"

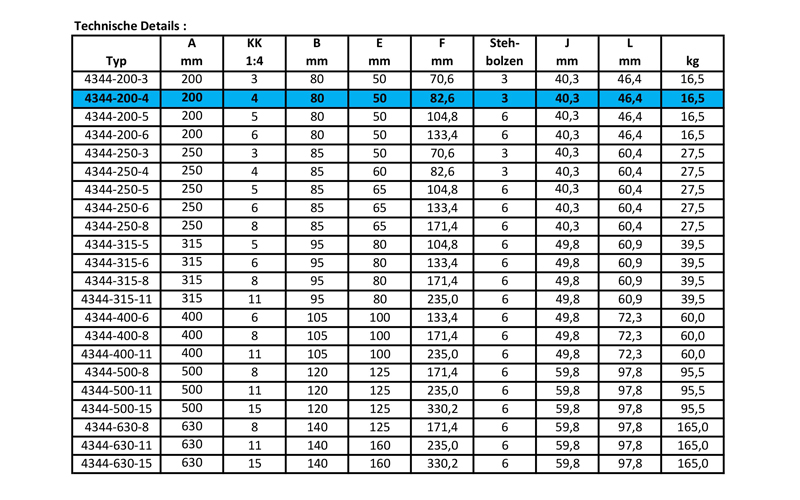

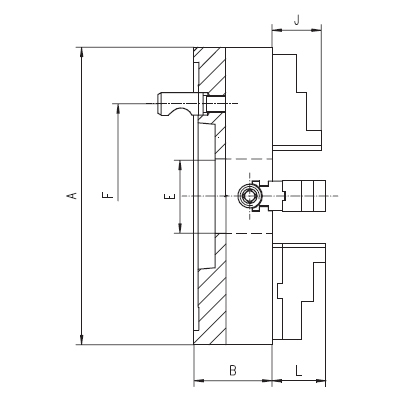

A KK 1:4 / ST 1:4 B E F Stehbolzen / Stud bolts J... more
A KK 1:4 /
ST 1:4
B E F Stehbolzen /
Stud bolts
J L kg
200 4 80 50 82,6 3 40,3 46,4 16,5
200 6 80 50 133,4 6 40,3 46,4 16,5
250 6 85 65 133,4 6 40,3 60,4 27,5
250 8 85 65 171,4 6 40,3 60,4 27,5
315 6 95 80 133,4 6 49,8 60,9 39,5
315 8 95 80 171,4 6 49,8 60,9 39,5
400 8 105 100 171,4 6 49,8 72,3 60,0
400 11 105 100 235,0 6 49,8 72,3 60,0
500 8 120 125 171,4 6 59,8 97,8 95,5
500 11 120 125 235,0 6 59,8 97,8 95,5
630 8 140 125 171,4 6 59,8 97,8 165,0
630 11 140 160 235,0 6 59,8 97,8 165,0

Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel /
Incl. 1 set of solid reversible jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
