Independent chuck Bison type 4334-315-8

Preview: Planscheibe DIN 55027 Bison Typ 4334-315-8 Preview: Zeichnung Planscheibe DIN 55027 Bison Typ 4334-315-8
Planscheibe DIN 55027 Bison Typ 4334-315-8

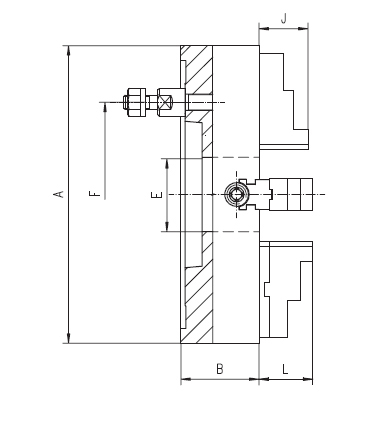

Zeichnung Planscheibe DIN 55027 Bison Typ 4334-315-8

€1,242.00 *
€1,477.98 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 354334130400
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 50 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Independent chuck  Bison 4334-315-8 - DIN 55027, type C mounting (BAYONET) - type... more
Close menu
Product information "Independent chuck Bison type 4334-315-8"

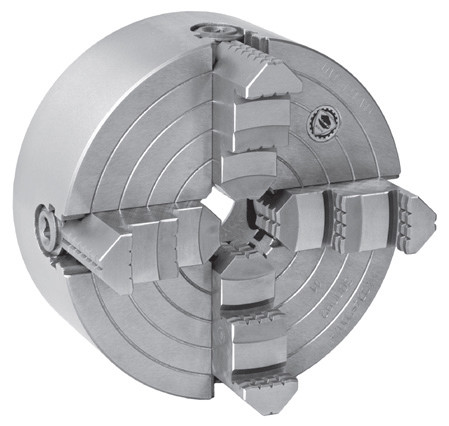

Independent chuck Bison 4334-315-8

- DIN 55027, type C mounting (BAYONET)
- type 4334 Ø 315 mm, taper 8
- material of body: cast iron
- solid jaws
- with additional T-slots
- incl. 1 set of solid reversible jaws and 1 wrench

Related links to "Independent chuck Bison type 4334-315-8"

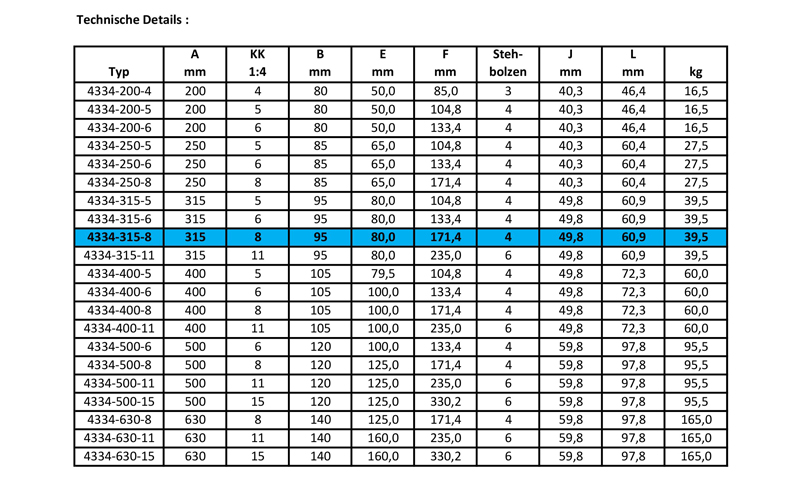

Technical data
more
Zurück

354334130400-4334-315-8
