Hard master jaws for independent chucks Ø 315 mm

€378.00 *
€449.82 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398573540300
  • 84662091
  • 3,6 kg
  • 0
Hard master jaws for Bison independent chucks Ø 315 mm - material: steel - 4 pieces/set more
Product information "Hard master jaws for independent chucks Ø 315 mm"

Hard master jaws for Bison
independent chucks Ø 315 mm

- material: steel
- 4 pieces/set

Related links to "Hard master jaws for independent chucks Ø 315 mm"

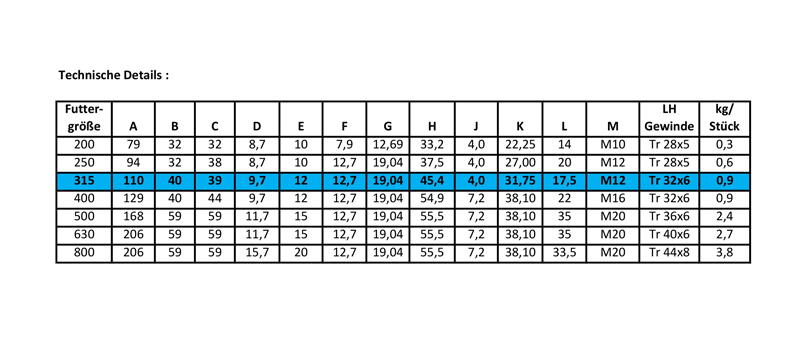

Futtergröße / Chuck size A B C D E F G H J K L M* LH Gewinde /... more
Futtergröße /
Chuck size
A B C D E F G H J K L M* LH Gewinde /
LH Thread
kg pro Stück /
kg per piece
200 79 32 32 8,7 10 7,94 12,96 33,2 4,0 22,25 14,0 M10 Tr 28x5 0,3
250 94 32 38 8,7 10 12,70 19,04 37,5 4,0 27,00 20,0 M12 Tr 28x5 0,6
315 110 40 39 9,7 12 12,70 19,04 45,4 4,0 31,75 17,5 M12 Tr 32x6 0,9
400 129 40 44 9,7 12 12,70 19,04 54,9 7,2 38,10 22,0 M16 Tr 32x6 0,9
500 168 52 59 11,7 15 12,70 19,04 55,5 7,2 38,10 35,0 M20 Tr 36x6 2,4
630 206 52 59 11,7 15 12,70 19,04 55,5 7,2 38,10 35,0 M20 Tr 40x6 2,7
800 206 70 59 15,7 20 12,70 19,04 55,5 7,2 38,10 33,5 M20 Tr 44x8 3,8

* Schrauben sind im Lieferumfang enthalten /
* Srews are included in delivery

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
