6-jaw scroll chuck Bison type 3866-160

€2,340.00 *
€2,784.60 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353866050100
  • 84662091
  • 7 kg
  • 0
6-jaw scroll chuck Bison for sharpening drills - type 3866 Ø 160 mm - lever scroll chuck... more
Product information "6-jaw scroll chuck Bison type 3866-160"

6-jaw scroll chuck Bison for sharpening drills

- type 3866 Ø 160 mm
- lever scroll chuck is specially designed for
  grinding twist drills and other cutting tools
- fine adjustment to the required concentricity by means
  of 4 radially arranged adjusting screws
- material of body: steel
- solid jaws
- incl. 1 set of hard solid jaws and 1 operating lever

Related links to "6-jaw scroll chuck Bison type 3866-160"

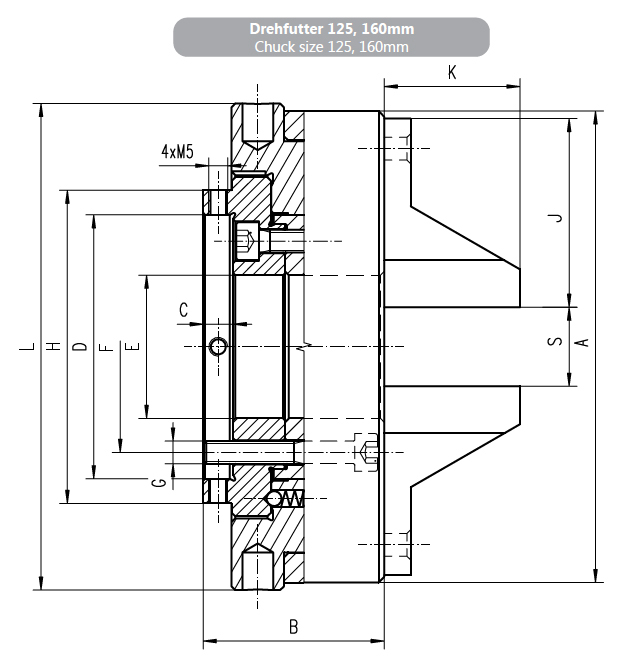

A B C D E F G H J K L S Länge des Bedienschlüssels mm / Length of... more
A B C D E F G H J K L S Länge des Bedienschlüssels mm /
Length of the operating lever mm
kg
80 35 1,5 48,0 24 39 3xM6 52 35 22 82 1 – 23 100 2,0
100 40 2,0 75,0 32 62 3xM8 85 42 25 102 1,5 – 31 125 2,8
125 48 8,0 70,0 38 56 3xM6 83 50 36 129 2 – 37 160 4,0
160 52 8,0 78,5 52 65 3xM6 96 58 36 164 3 – 51 200 7,0

Inkl. 1 Satz harter Backen und 1 Bedienschlüssel /
Incl. 1 set of hard solid jaws and 1 operating lever

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
