6-jaw scroll chuck Bison type 3866-80
Product number:
353866020600
Customs tariff number
84662091
European Article Number
5907412209357
Weight
2 kg
Stock:
0
Related links:
Request Item
Product information "6-jaw scroll chuck Bison type 3866-80"

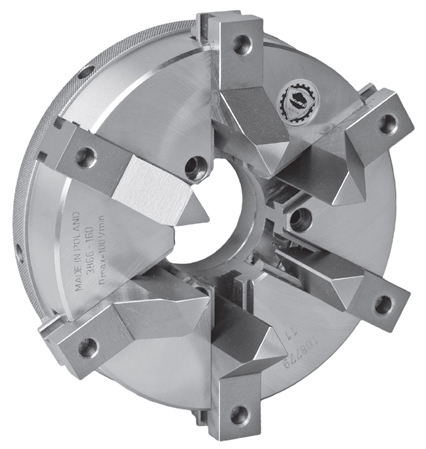

6-jaw scroll chuck Bison for sharpening drills
- type 3866 Ø 80 mm
- lever scroll chuck is specially designed for
grinding twist drills and other cutting tools
- material of body: steel
- solid jaws
- incl. 1 set of hard solid jaws and 1 operating lever

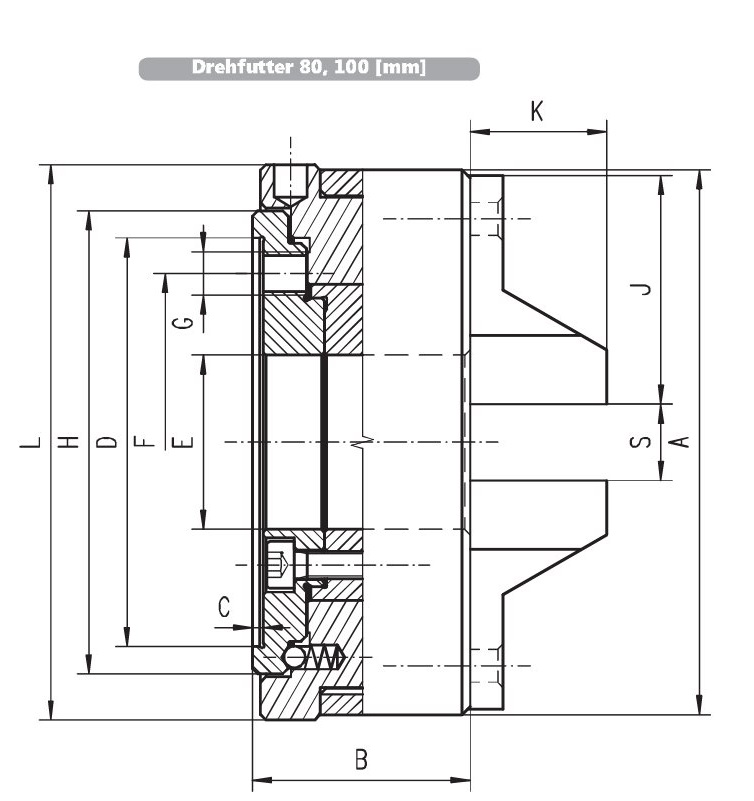

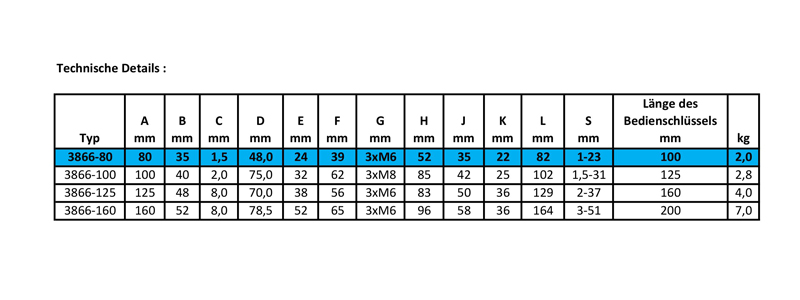

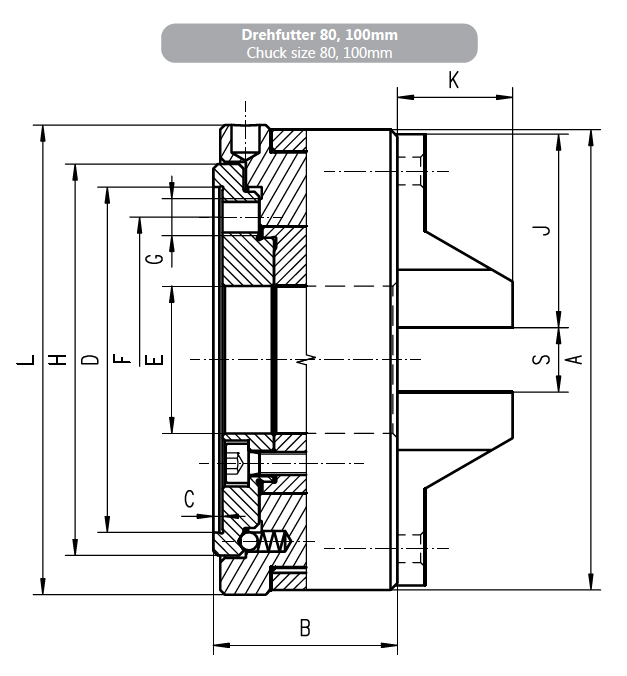

Technical Data
| A | B | C | D | E | F | G | H | J | K | L | S | Länge des Bedienschlüssels mm / Length of the operating lever mm |
kg |
| 80 | 35 | 1,5 | 48,0 | 24 | 39 | 3xM6 | 52 | 35 | 22 | 82 | 1 – 23 | 100 | 2,0 |
| 100 | 40 | 2,0 | 75,0 | 32 | 62 | 3xM8 | 85 | 42 | 25 | 102 | 1,5 – 31 | 125 | 2,8 |
| 125 | 48 | 8,0 | 70,0 | 38 | 56 | 3xM6 | 83 | 50 | 36 | 129 | 2 – 37 | 160 | 4,0 |
| 160 | 52 | 8,0 | 78,5 | 52 | 65 | 3xM6 | 96 | 58 | 36 | 164 | 3 – 51 | 200 | 7,0 |
| Inkl. 1 Satz harter Backen und 1 Bedienschlüssel / Incl. 1 set of hard solid jaws and 1 operating lever |
|||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
