Swivel angle plate type 5155-250x315

Preview: Swivel angle plate type 5155-250x315 Preview: Detail Swivel angle plate type 5155-250x315 Preview: Drawing Swivel angle plate type 5155-250x315

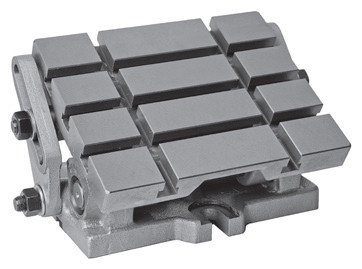

Swivel angle plate type 5155-250x315

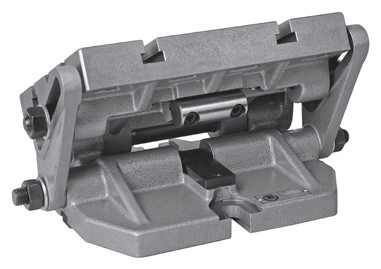

Detail Swivel angle plate type 5155-250x315

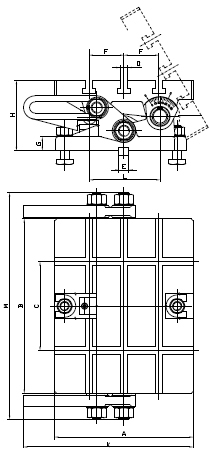

Drawing Swivel angle plate type 5155-250x315

€1,614.40 *
€1,921.14 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 375155020600
  • Customs tariff number: 84663000
  • European article number:
  • Weight: 37 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Swivel angle plate,  Bison type 5155 - dimensions (A x B): 250 x 315 mm - easily set... more
Close menu
Product information "Swivel angle plate type 5155-250x315"

Swivel angle plate, Bison type 5155

- dimensions (A x B): 250 x 315 mm
- easily set at any angle between horizontal and vertical plates
- swivel plate type 5155 (sine) permit acurate angle setting
  in 0-60° range by means of gauge blocks

Related links to "Swivel angle plate type 5155-250x315"

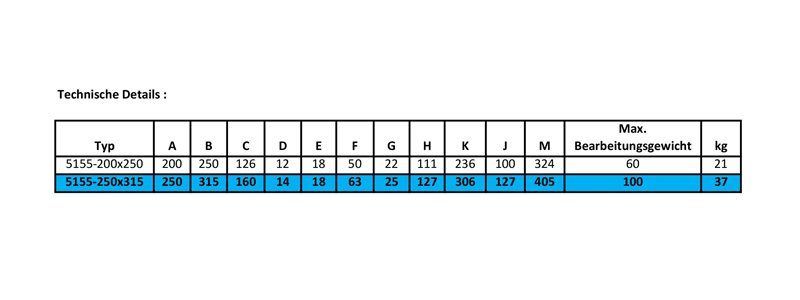

Technical data
Typ / Type A B C D E F G H K L M Max.... more
Zurück
Typ /
Type		 A B C D E F G H K L M Max. Bearbeitungsgewicht /
Max. working weight		 kg

5155-200x250 200 250 126 12 18 50 22 111 236 100 324 60 21
5155-250x315 250 315 160 14 18 63 25 127 306 127 405 100 37

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
