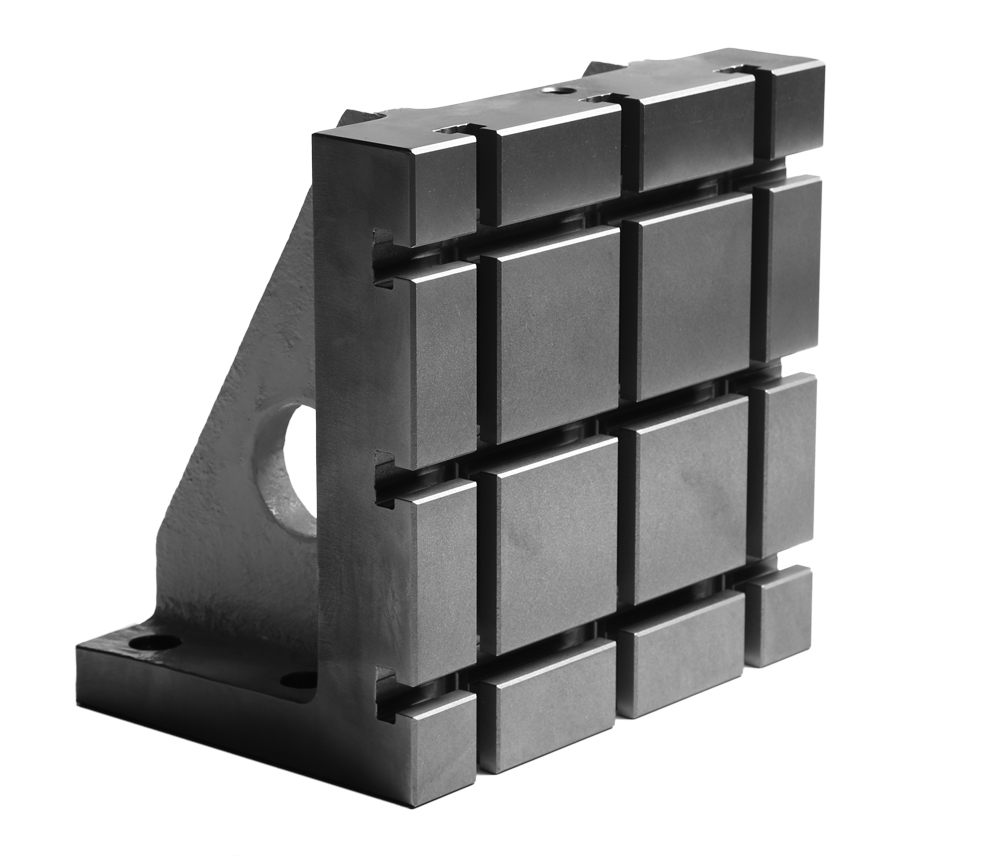

Angle plate with t-slots, type RS28-800/14

€4,415.47 *
€5,254.41 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 38-RS28-800/14
  • 9017 2039
  • 4049794059463
  • 577 kg
  • 1
Angle plate with t-slots RS28-800/14 - size (A x B): 800 x 800 mm - width of the... more
Product information "Angle plate with t-slots, type RS28-800/14"

Angle plate with t-slots RS28-800/14

- size (A x B): 800 x 800 mm
- width of the t-nuts: 14 mm
- GG 30 stress-annealed

Related links to "Angle plate with t-slots, type RS28-800/14"

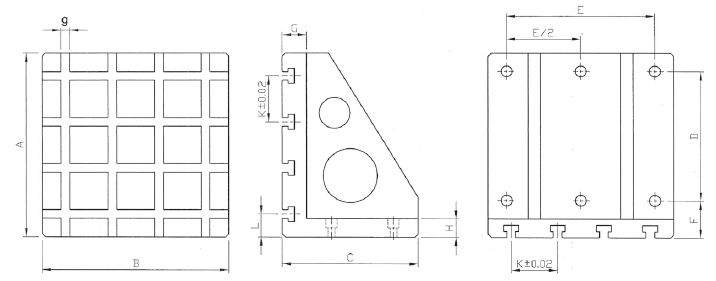

A mm B mm C mm D mm E mm F mm G mm H mm I mm g mm K mm (± 0,02) L mm... more
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
g
mm
K
mm (± 0,02)
L
mm
kg
300 300 220 100 250 90 60 30 Ø 18 14 100 50 63
400 400 280 160 320 90 60 30 Ø 18 14 100 50 114
500 500 350 200 400 90 60 35 Ø 18 14 100 50 184
630 630 450 250 500 100 60 40 Ø 18 14 125 65 316
800 800 550 320 640 115 75 45 Ø 18 14 150 100 577
300 300 220 100 250 90 60 30 Ø 18 18 100 50 59
400 400 300 160 320 90 60 30 Ø 18 18 100 50 111
500 500 350 200 400 90 60 35 Ø 18 18 100 50 175
630 630 450 250 500 100 65 40 Ø 18 18 125 65 304

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
