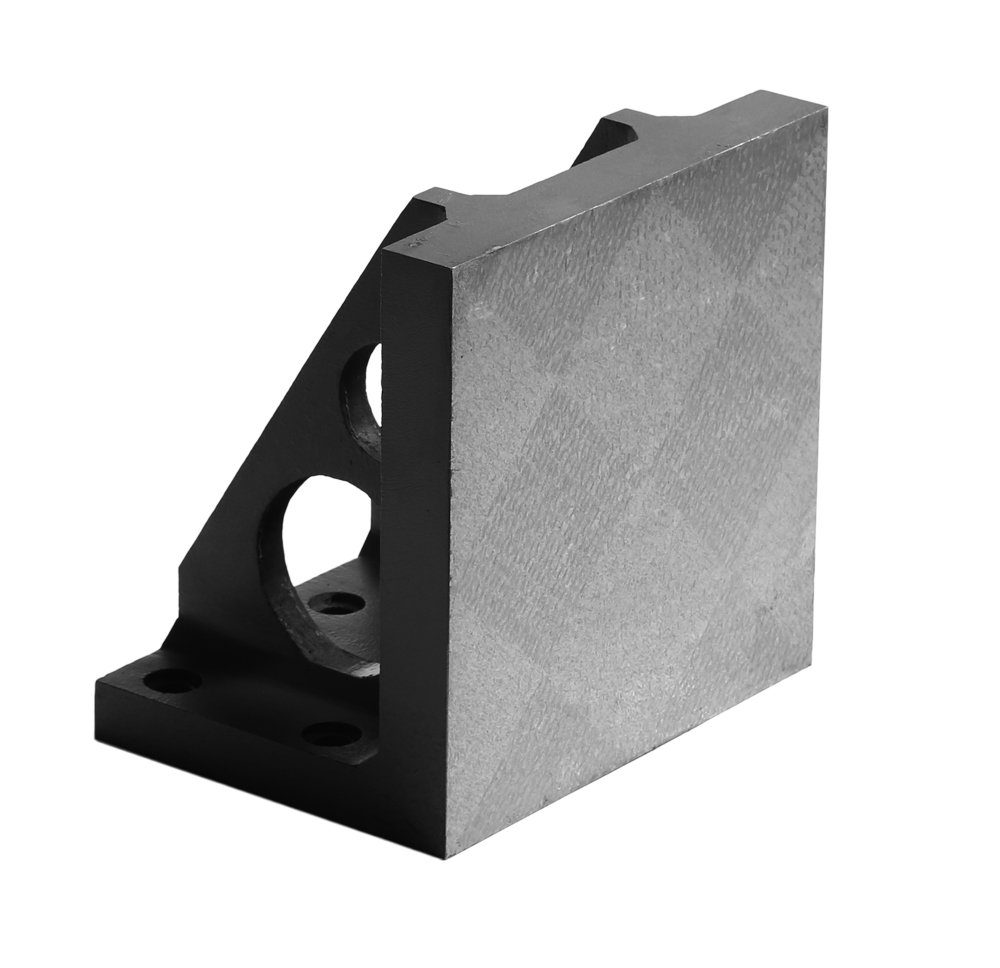

Angle plate, type CD23-500

Preview: Angle plate, type CD23-500 Preview: Drawing Angle plate, type CD23-500
Angle plate, type CD23-500

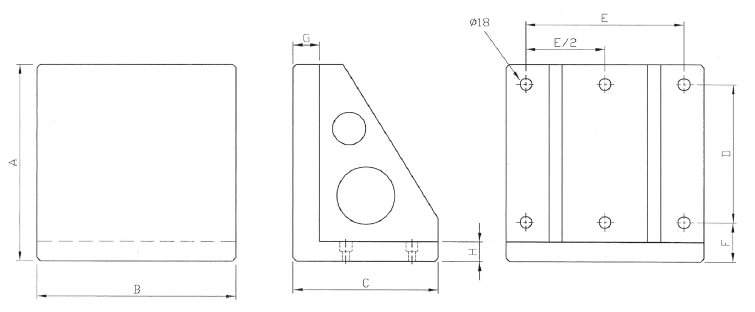

Drawing Angle plate, type CD23-500

€1,310.26 *
€1,559.21 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 38-CD23-500
  • Customs tariff number: 9017 2039
  • European article number: 4049794010105
  • Weight: 175 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Angle plate CD23-500 - size (A x B): 500 x 500 mm - GG 30 stress-annealed more
Close menu
Product information "Angle plate, type CD23-500"

Angle plate CD23-500

- size (A x B): 500 x 500 mm
- GG 30 stress-annealed

Related links to "Angle plate, type CD23-500"
Technical data
A mm B mm C mm D mm E mm F mm G mm H mm kg 300 300 220 100 250 90 40 30 52... more
Zurück
A
mm		B
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		kg
30030022010025090403052
40040028016032090403090
500500350200400905035175
6306304502505001005040305
8008005503206401155045480

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
