Angle plate, type CD23-800

Preview: Angle plate, type CD23-800 Preview: Drawing Angle plate, type CD23-800
Angle plate, type CD23-800

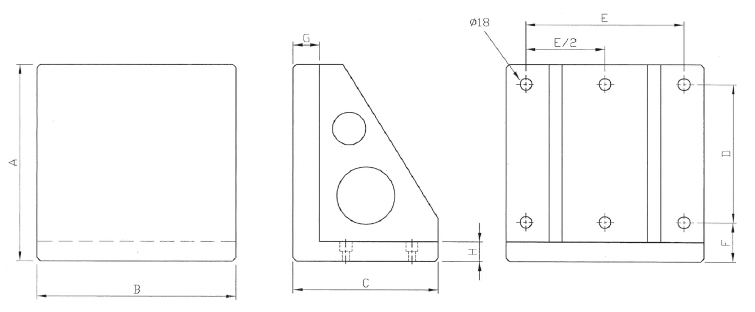

Drawing Angle plate, type CD23-800

€2,636.28 *
€3,137.17 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 38-CD23-800
  • Customs tariff number: 9017 2039
  • European article number: 4049794010129
  • Weight: 480 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Angle plate CD23-800 - size (A x B): 800 x 800 mm - GG 30 stress-annealed more
Close menu
Product information "Angle plate, type CD23-800"

Angle plateCD23-800

- size (A x B): 800 x 800 mm
- GG 30 stress-annealed

Related links to "Angle plate, type CD23-800"
Technical data
A mm B mm C mm D mm E mm F mm G mm H mm kg 300 300 220 100... more
Zurück
A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 kg
300 300 220 100 250 90 40 30 52
400 400 280 160 320 90 40 30 90
500 500 350 200 400 90 50 35 175
630 630 450 250 500 100 50 40 305
800 800 550 320 640 115 50 45 480

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
