Angle plate with clamping slots, type AWSS 200

€103.10 *
€122.69 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 38-AWSS-200
  • 8466 3000
  • 4049794060865
  • 7,33 kg
  • 0
Angle plate with clamping slots type  AWSS 200 - special cast iron - machined on 2... more
Product information "Angle plate with clamping slots, type AWSS 200"

Angle plate with clamping slots type AWSS 200

- special cast iron
- machined on 2 sides
- clamping surface and base with clamping slots
- reinforced by ribs
- squareness and parallelism:
  0,01 mm / 100 mm

Related links to "Angle plate with clamping slots, type AWSS 200"

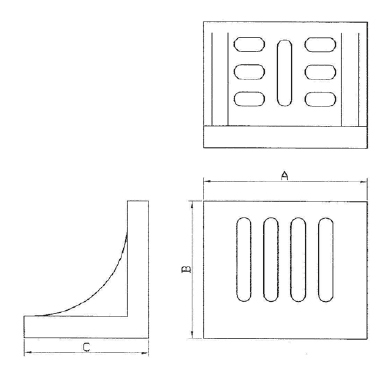

Typ / Type A mm B mm C mm kg 150 150 126 115 4 200 202... more
Typ /
Type
A
mm
B
mm
C
mm
kg
150 150 126 115 4
200 202 150 126 8
250 250 202 126 12
300 300 228 202 24

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
