Hydraulic machine vice type FHS2 100

Preview: Hydraulic machine vice type FHS2 100 Preview: Drawing 1 Hydraulic machine vice type FHS2 100 Preview: Drawing 2 Hydraulic machine vice type FHS2 100 Preview: Drawing 3 Hydraulic machine vice type FHS2 100

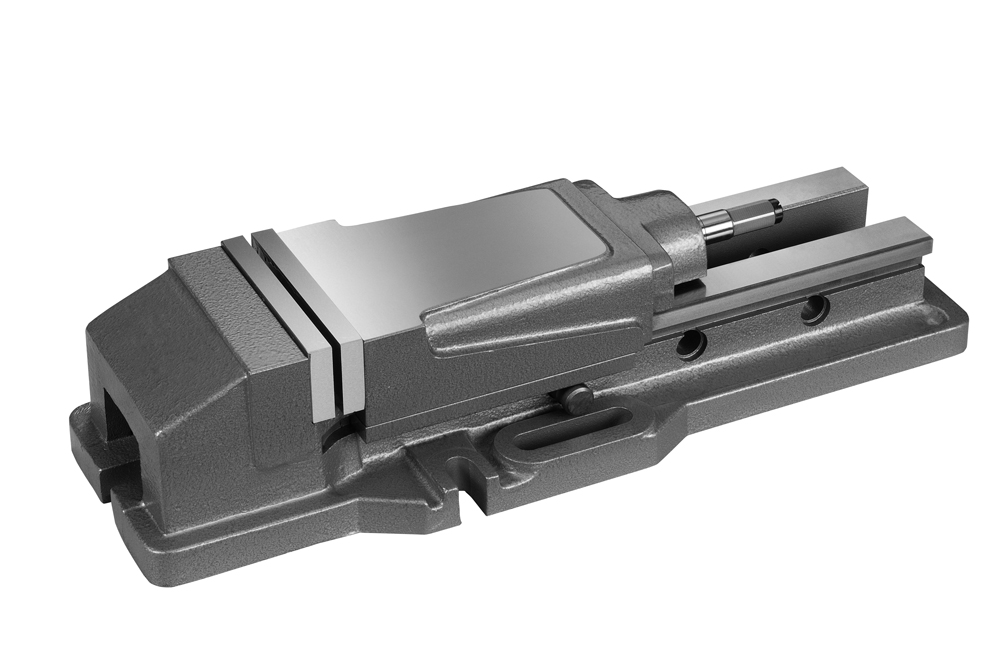

Hydraulic machine vice type FHS2 100

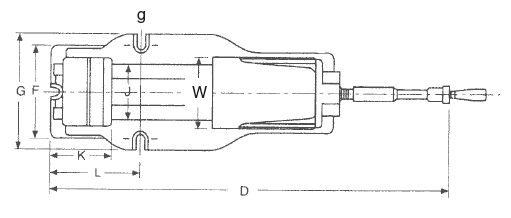

Drawing 1 Hydraulic machine vice type FHS2 100

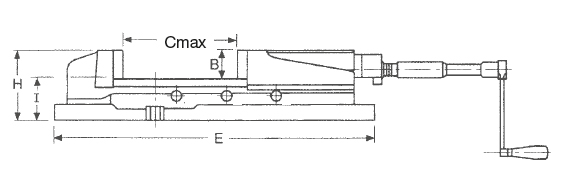

Drawing 2 Hydraulic machine vice type FHS2 100

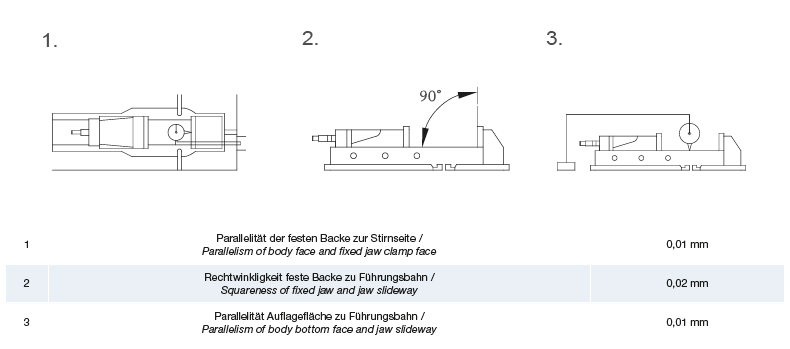

Drawing 3 Hydraulic machine vice type FHS2 100

€516.89 *
€615.10 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-FHS2-100
  • Customs tariff number: 8466 2098
  • European article number: 4049794675977
  • Weight: 21 kg
  • In stock: 9
Description Technical data Evaluations 0
Description
Hydraulic machine vice FHS2 100 - sturdy design with hydraulic high-pressure spindle,... more
Close menu
Product information "Hydraulic machine vice type FHS2 100"

Hydraulic machine vice FHS2 100

- sturdy design with hydraulic high-pressure spindle,
  mechanical drive and large clamping capacity
- high accuracy
- rapid clamping range adjustment with socket pins
- all wearing parts are hardened, therefore suitable for
  heavy- and light-duty machining operations
- incl. hand crank, extension and plain jaws

Related links to "Hydraulic machine vice type FHS2 100"
Technical data
Typ / Type W mm B mm Cmax mm D mm E mm... more
Zurück
Typ /
Type		 W
mm		 B
mm		 Cmax
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 g
mm		 Spannkraft /
Clamping force daN		 kg
FHS 100 105 36 170 695 440 135 170 95 58 80 95 147 20 2500 21
FHS 125 130 48 220 840 550 175 207 120 70,5 97 107 195 20 3500 38
FHS 150 150 53 300 970 620 182 225 135 82,5 116 117 210 20 4500 53
FHS 200 200 62 300 1070 680 260 280 162 100 160 150 260 20 8000 95

Inkl. Kurbel, Verlängerung und glatten Backen /
Incl. hand crank, extension and plain jaws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
