Hydraulic machine vice type FHS2 125

Preview: Hydraulic machine vice type FHS2 125 Preview: Drawing 1 Hydraulic machine vice type FHS2 125 Preview: Drawing 2 Hydraulic machine vice type FHS2 125 Preview: Drawing 3 Hydraulic machine vice type FHS2 125

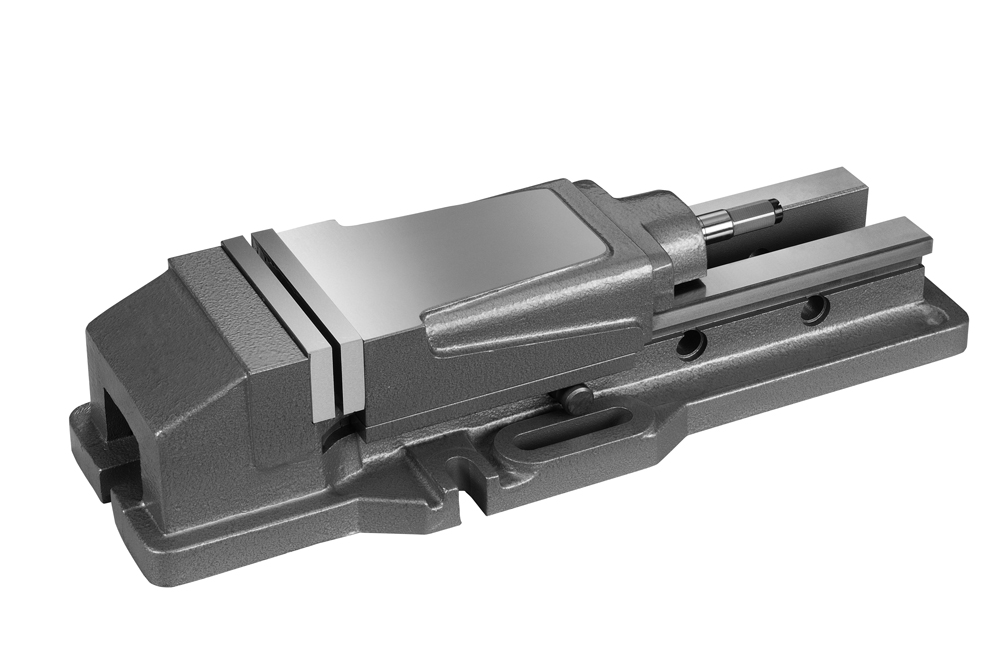

Hydraulic machine vice type FHS2 125
Drawing 1 Hydraulic machine vice type FHS2 125
Drawing 2 Hydraulic machine vice type FHS2 125
Drawing 3 Hydraulic machine vice type FHS2 125

€563.40 *
€670.45 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-FHS2-125
  • Customs tariff number: 8466 2098
  • European article number: 4049794675984
  • Weight: 38 kg
  • In stock: 25
Description Technical data Evaluations 0
Description
Hydraulic machine vice FHS2 125 - sturdy design with hydraulic high-pressure spindle,... more
Close menu
Product information "Hydraulic machine vice type FHS2 125"

Hydraulic machine vice FHS2 125

- sturdy design with hydraulic high-pressure spindle,
  mechanical drive and large clamping capacity
- high accuracy
- rapid clamping range adjustment with socket pins
- all wearing parts are hardened, therefore suitable for
  heavy- and light-duty machining operations
- incl. hand crank, extension and plain jaws

Related links to "Hydraulic machine vice type FHS2 125"
Technical data

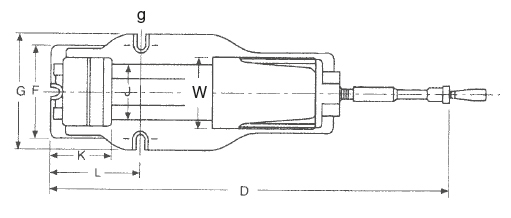

Typ / Type W mm B mm Cmax mm D mm E mm F mm G mm H mm I mm J mm K mm L mm g mm... more
Zurück
Typ /
Type		W
mm		B
mm		Cmax
mm		D
mm		E
mm		F
mm		G
mm		H
mm		I
mm		J
mm		K
mm		L
mm		g
mm		Spannkraft /
Clamping force daN		kg
FHS 100105361706954401351709558809514720250021
FHS 1251304822084055017520712070,59710719520350038
FHS 1501505330097062018222513582,511611721020450053
FHS 20020062300107068026028016210016015026020800095

Inkl. Kurbel, Verlängerung und glatten Backen /
Incl. hand crank, extension and plain jaws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
