Milling machine vice mechanical, type MSK 200

Preview: Milling machine vice mechanical, type MSK 200 Preview: Drawing 1 Milling machine vice mechanical, type MSK 200 Preview: Drawing 2 Milling machine vice mechanical, type MSK 200

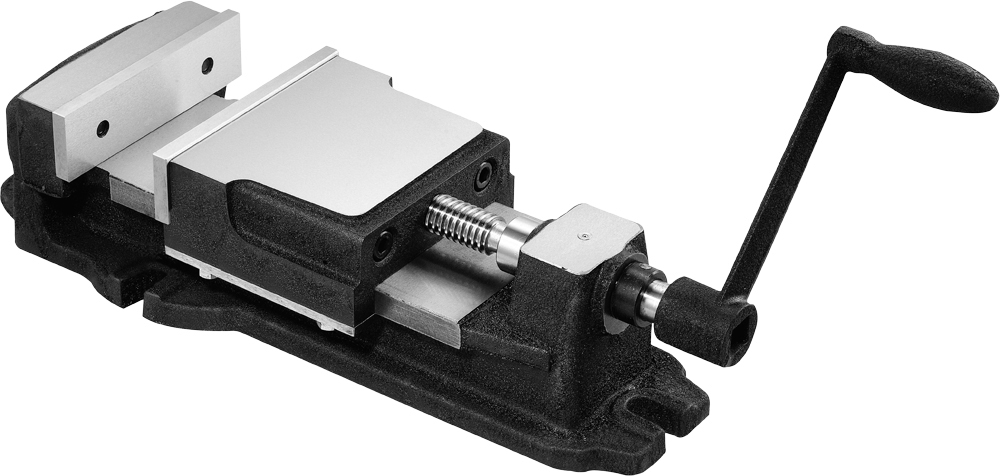

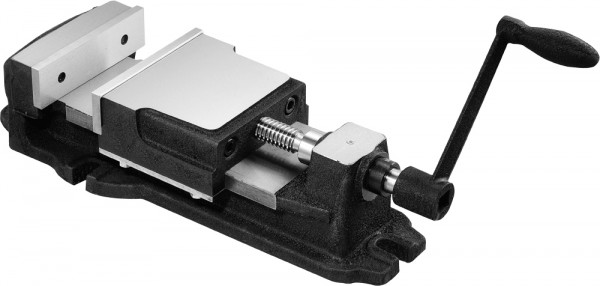

Milling machine vice mechanical, type MSK 200

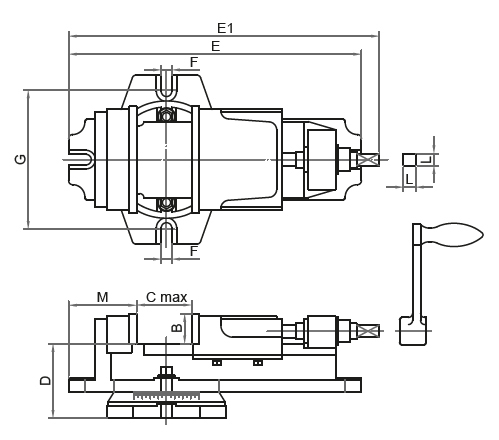

Drawing 1 Milling machine vice mechanical, type MSK 200
Drawing 2 Milling machine vice mechanical, type MSK 200

€285.84 *
€340.15 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-MSK200
  • Customs tariff number: 8466 2098
  • European article number: 4049794051115
  • Weight: 44 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Milling machine vice MSK 200 without swivel plate - mechanical - for milling, grinding... more
Close menu
Product information "Milling machine vice mechanical, type MSK 200"

Milling machine vice MSK 200 without swivel plate

- mechanical
- for milling, grinding and drilling operations
- jaws hardened and ground

Type: Milling macine vices
Jaw width: 200 mm
Type: mechanically
Clamping capacity: 150 mm
Make: Zentra
Related links to "Milling machine vice mechanical, type MSK 200"
Technical data
Typ / Type W mm B mm Cmax mm E mm E1 mm F mm G mm H mm L mm M mm... more
Zurück
Typ /
Type		 W
mm		 B
mm		 Cmax
mm		 E
mm		 E1
mm		 F
mm		 G
mm		 H
mm		 L
mm		 M
mm		 Max. Spannkraft /
Clamping force daN		 kg
100 104 36 62 293 310 13 145 83 15 65 900 9
125 130 37 82 362 384 13 172 97 15 84 900 15
150 152 43 112 442 473 15 209 108 16,5 90 1000 26
200 204 63 149 579 609 18 312 148 21 122 1400 53

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
