Milling machine vice MSK 100D with swivel plate

Preview: Milling machine vice MSK 100D with swivel plate Preview: Drawing 1 Milling machine vice MSK 100D with swivel plate Preview: Drawing 2 Milling machine vice MSK 100D with swivel plate

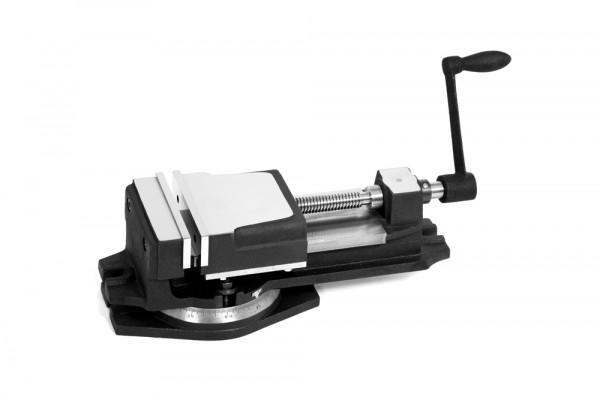

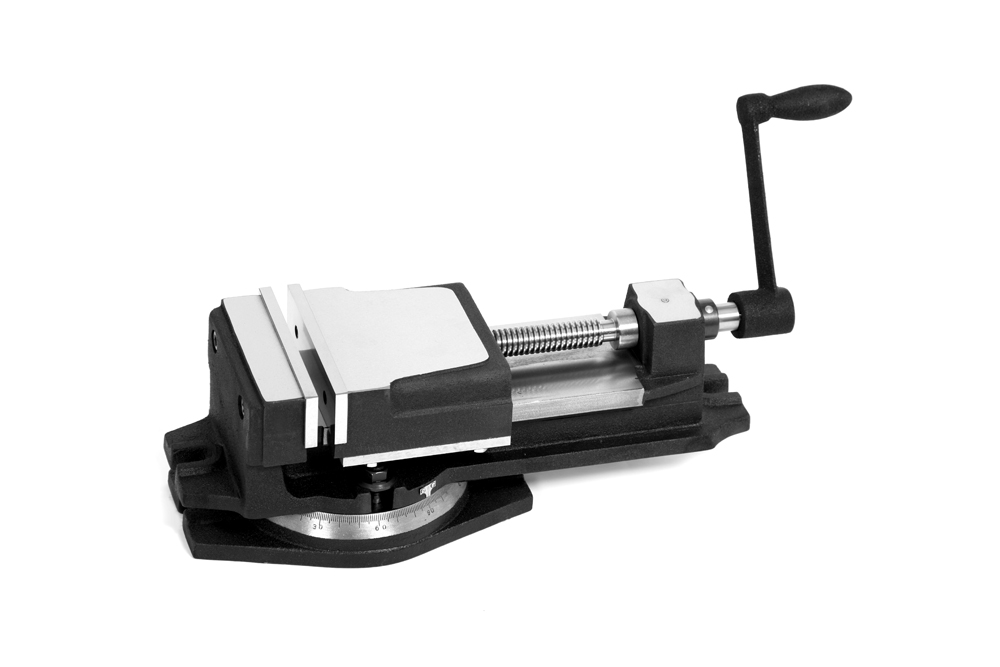

Milling machine vice MSK 100D with swivel plate

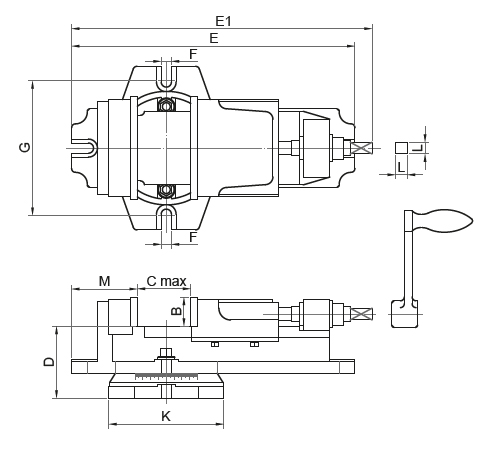

Drawing 1 Milling machine vice MSK 100D with swivel plate
Drawing 2 Milling machine vice MSK 100D with swivel plate

€108.94 *
€129.64 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-MSK100D
  • Customs tariff number: 8466 2098
  • European article number: 4049794051122
  • Weight: 10 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Milling machine vice MSK 100D with swivel plate - mechanical - for milling, grinding and... more
Close menu
Product information "Milling machine vice MSK 100D with swivel plate"

Milling machine vice MSK 100D with swivel plate

- mechanical
- for milling, grinding and drilling operations
- jaws hardened and ground

Related links to "Milling machine vice MSK 100D with swivel plate"
Technical data
Typ / Type W mm B mm Cmax mm D mm E mm... more
Zurück
Typ /
Type		 W
mm		 B
mm		 Cmax
mm		 D
mm		 E
mm		 E1
mm		 F
mm		 G
mm		 H
mm		 I
mm		 J
mm		 K
mm		 L
mm		 M
mm		 Max. Spannkraft /
Clamping force daN		 kg
100 104 36 62 76 293 310 13 145 83 113 176 122 15 65 900 10
125 130 37 82 92 362 384 13 172 97 129 209 147 15 84 900 17
150 152 43 112 105 442 473 15 209 108 148 260 181 16,5 90 1000 28
200 204 63 149 127 579 609 18 312 148 190 350 234 21 122 1400 56

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
