Precision machine vice type SVC 200 / 300

Preview: Precision machine vice type SVC 200 / 300 Preview: Fig 1 Precision machine vice type SVC 200 / 300 Preview: Fig 2 Precision machine vice type SVC 200 / 300 Preview: Drawing Precision machine vice type SVC 200 / 300

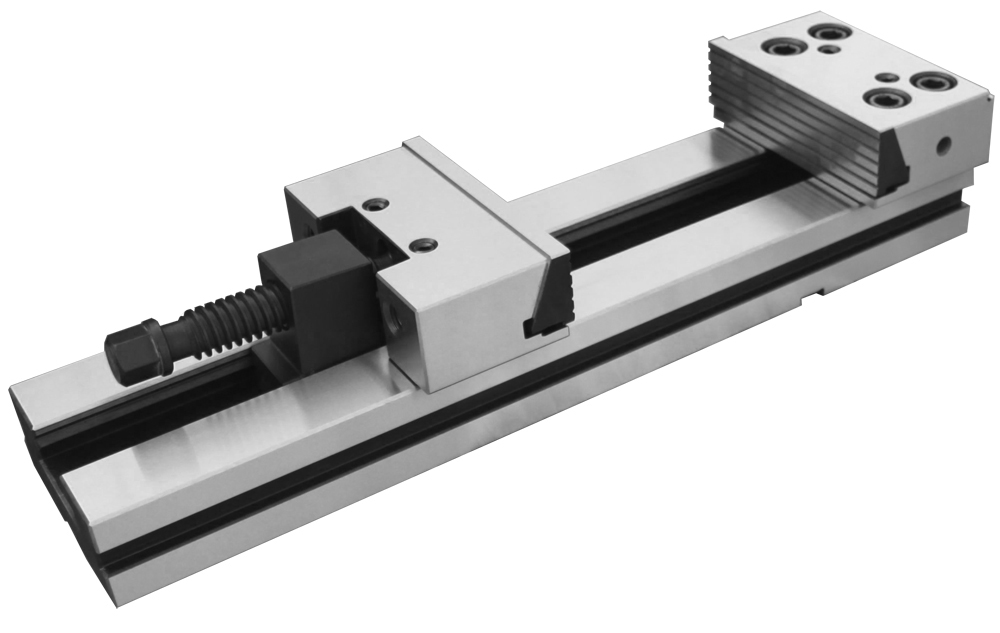

Precision machine vice type SVC 200 / 300

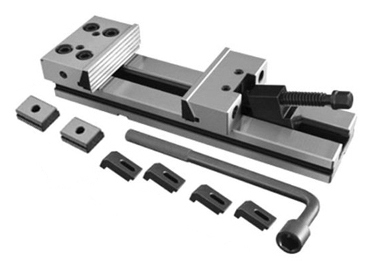

Fig 1 Precision machine vice type SVC 200 / 300

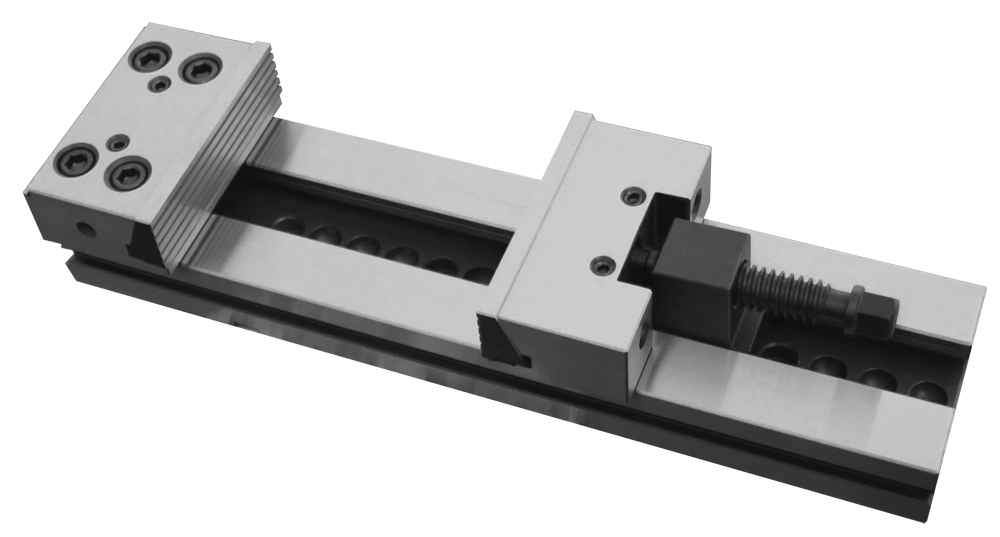

Fig 2 Precision machine vice type SVC 200 / 300

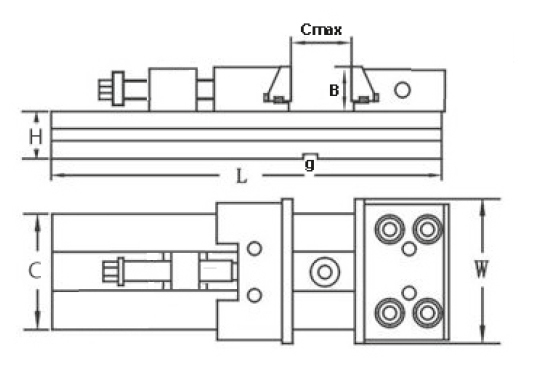

Drawing Precision machine vice type SVC 200 / 300

€1,222.34 *
€1,454.58 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-SVC-200/300
  • Customs tariff number: 8466 2098
  • European article number: 4049794077931
  • Weight: 72 kg
  • In stock: 5
Description Technical data Product Safety Information Evaluations 0
Description
Precision machine vice with quick adjustment type SVC - hardened slideways - with pull-down... more
Close menu
Product information "Precision machine vice type SVC 200 / 300"

Precision machine vice with quick adjustment type SVC

- hardened slideways
- with pull-down mechanism
- modular system
- parallelism < 0,005 / 100 mm
- perpendicularity < 0,02 / 50 mm
- repeatability < 0,02 mm
- fixed jaw rotatable by 180°, reverse with step
- incl. brackets, T-nuts, wrench and crank

Type: Machine vices
Jaw width: 200 mm
Type: mechanically, with quick adjustment
Clamping capacity: 300 mm
Make: Zentra
Related links to "Precision machine vice type SVC 200 / 300"
Technical data
W mm Cmax mm L mm A mm H mm B mm g mm Max. Anz.moment / Max. torque Nm... more
Zurück
W
mm		 Cmax
mm		 L
mm		 A
mm		 H
mm		 B
mm		 g
mm		 Max. Anz.moment /
Max. torque Nm		 Max. Spannkraft /
Clamping force daN		 kg
100 100 270 75 35 30 16 30 3000 7
125 150 345 95 40 40 16 40 3000 13
150 200 420 125 50 50 16 60 5000 26
150 300 520 125 50 50 16 60 5000 29
175 300 555 145 58 60 16 60 6000 42
200 200 495 170 70 65 16 80 10000 64
200 300 595 170 70 65 16 80 10000 69
200 400 695 170 70 65 16 80 10000 74

Inkl. Spannpratzen, Passsteine, Schlüssel, Handkurbel und Werkstückanschlag /
Incl. brackets, T-nuts, wrench, crank and work piece stop

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
