Drilling machine vice type MSP 120

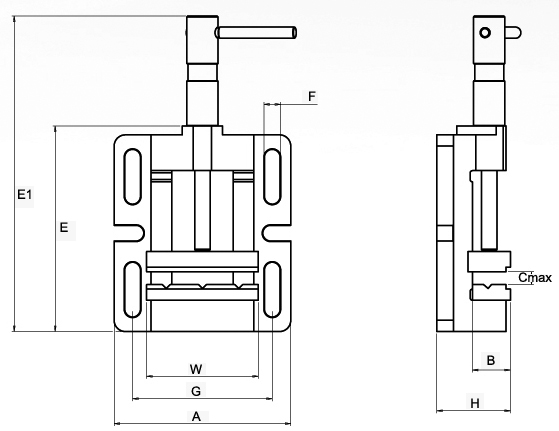

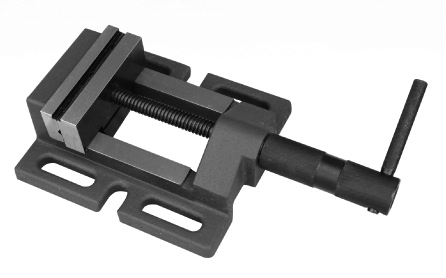

Preview: Drilling machine vice type MSP 120 Preview: Drawing Drilling machine vice type MSP 120
Drilling machine vice type MSP 120
Drawing Drilling machine vice type MSP 120

€40.46 *
€48.15 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 0T-206120
  • Customs tariff number: 8466 2098
  • European article number: 4260073571883
  • Weight: 8 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Drilling machine vice MSP 120 - cast iron body - steel jaws with vertical and horizontal... more
Close menu
Product information "Drilling machine vice type MSP 120"

Drilling machine vice MSP 120

- cast iron body
- steel jaws with vertical and horizontal prism

Type: Drilling machine vices
Jaw width: 120 mm
Type: mechanically
Clamping capacity: 110 mm
Make: Zentra
Related links to "Drilling machine vice type MSP 120"
Technical data
Typ / Type W mm Cmax mm A mm B mm E mm E1 mm G mm H mm F... more
Zurück
Typ /
Type		 W
mm		 Cmax
mm		 A
mm		 B
mm		 E
mm		 E1
mm		 G
mm		 H
mm		 F
mm		 kg
MSP 80 85 65 135 29 150 230 105 58 11 4
MSP 100 100 85 156 33 182 280 125 68 13 5
MSP 120 120 110 175 33 210 320 140 72 14 8
MSP 150 150 135 195 39 240 380 160 78 14 8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
