Test arbor DIN 69880, VDI 20
€202.46*
€240.93 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
83-PD-20-40
Customs tariff number
8466 1031
European Article Number
4049794010709
Weight
1,65 kg
Stock:
5
Related links:
Request Item
Product information "Test arbor DIN 69880, VDI 20"
Test arbor VDI 20 - DIN 69880
- wooden case and calibration certificate upon request
| DIN: | 69880 |
|---|---|
| Type: | Test arbors |
| VDI: | 20 |

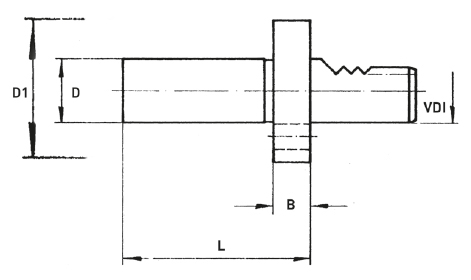

Technical Data
| VDI | D mm |
D1 mm |
L mm |
B mm |
| 16 | 30 | 40 | 120 | 15 |
| 20 | 40 | 50 | 150 | 15 |
| 25 | 40 | 58 | 150 | 15 |
| 30 | 40 | 68 | 200 | 15 |
| 40 | 40 | 83 | 200 | 15 |
| 50 | 40 | 98 | 200 | 15 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
