Assembly support VDI 20, tiltable

€136.37 *
€162.28 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 47-MBS-20
  • 8466 1038
  • 4049794010648
  • 2,25 kg
  • 2
Assembly support VDI, tiltable - size: VDI 20 - with star handle more
Product information "Assembly support VDI 20, tiltable"

Assembly support VDI, tiltable

- size: VDI 20
- with star handle

Related links to "Assembly support VDI 20, tiltable"

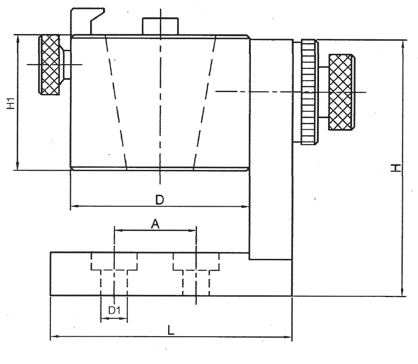

Größe / Size D mm H1 mm D1 mm H mm A mm L mm * SK 30 / BT 30 88 46... more
Größe /
Size
D
mm
H1
mm
D1
mm
H
mm
A
mm
L
mm
* SK 30 / BT 30 88 46 11 132 55 111
* SK 40 / BT 40 93 57 11 132 55 111
* SK 50 / BT 50 118 62 11 176 55 111
** VDI 16 78 50 11 132 55 111
** VDI 20 83 50 11 132 55 111
** VDI 25 93 57 11 132 55 111
** VDI 30 93 57 11 132 55 111
** VDI 40 102 57 11 132 55 111
** VDI 50 118 62 11 176 55 111
** HSK 40 85 50 11 132 55 111
** HSK 50 93 57 11 132 55 111
** HSK 63 98 57 11 132 55 111
** HSK 100 135 62 11 176 55 111

* runder Griff / round handle
** Sterngriff / star handle

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
