Multiflex vice type MFS 75/800

Preview: Multiflex vice type MFS 75/800 Preview: Drawing 1 Multiflex vice type MFS 75/800 Preview: Drawing 2 Multiflex vice type MFS 75/800 Preview: Drawing 3 Multiflex vice type MFS 75/800

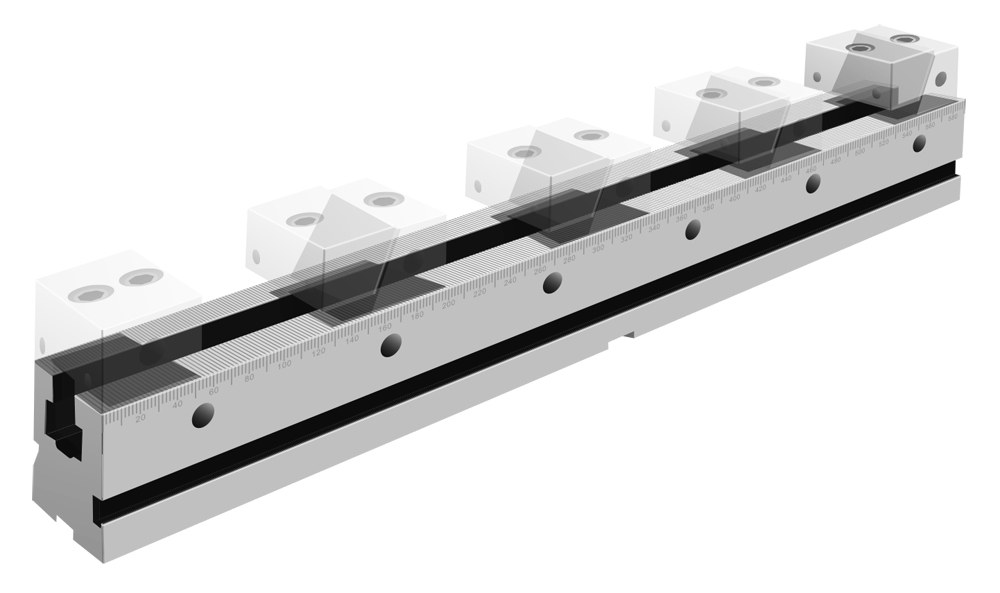

Multiflex vice type MFS 75/800

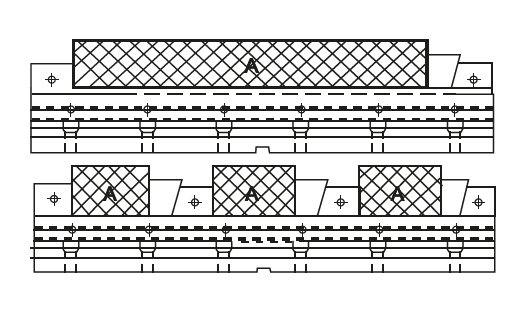

Drawing 1 Multiflex vice type MFS 75/800

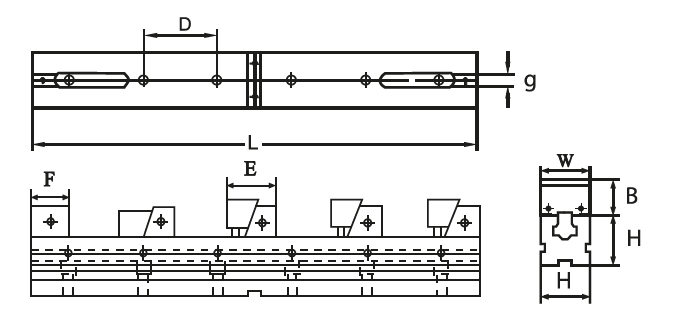

Drawing 2 Multiflex vice type MFS 75/800

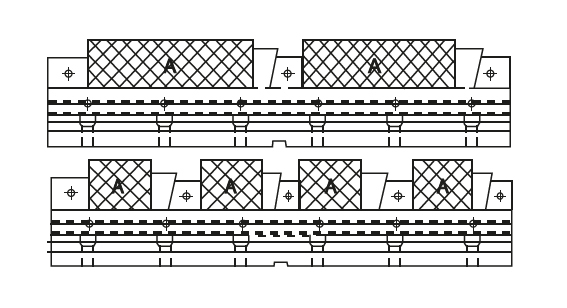

Drawing 3 Multiflex vice type MFS 75/800

€1,745.14 *
€2,076.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-MFS-75/800
  • Customs tariff number: 8466 2098
  • European article number: 4049794051016
  • Weight: 40,5 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Multiflex vice MFS 75/800 - for clamping of multiple work pieces - each clamping element... more
Close menu
Product information "Multiflex vice type MFS 75/800"

Multiflex vice MFS 75/800

- for clamping of multiple work pieces
- each clamping element individually adjustable
- optimum exploitation of machines work-space
- for horizontal applications
- with scale for easy of handling
- scope of delivery: 1 clamping bar, 1 fixed jaw (plain)
  and 4 clamping jaws (plain)
- incl. 4 brackets, t-nuts, srews, 2 key-nuts,
  4 piece stops and wrench

Related links to "Multiflex vice type MFS 75/800"
Technical data
H mm L mm W mm D mm F mm E mm B mm g mm 1xA 2xA 3xA 4Xa Max. Spannkraft /... more
Zurück
H
mm		L
mm		W
mm		D
mm		F
mm		E
mm		B
mm		g
mm		1xA2xA3xA4XaMax. Spannkraft /
Clamping force daN
75400741005070 - 75401627510041121500
5003751507537
60047520010862
70057525014187
800675300174112

Inkl. 4 Spannpratzen mit Nutensteinen und Schrauben, 2 Passsteine, 4 Werkstückanschläge, Spannschlüssel
Incl. 4 brackets, t-nuts, screws, 2 key-nuts, 4 work piece stops and wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
