Schraubstock Mehrfachspanner 75 / 400

Preview: Multiflex vice type MFS 75/400 Preview: Drawing 1 Multiflex vice type MFS 75/400 Preview: Drawing 2 Multiflex vice type MFS 75/400 Preview: Drawing 3 Multiflex vice type MFS 75/400

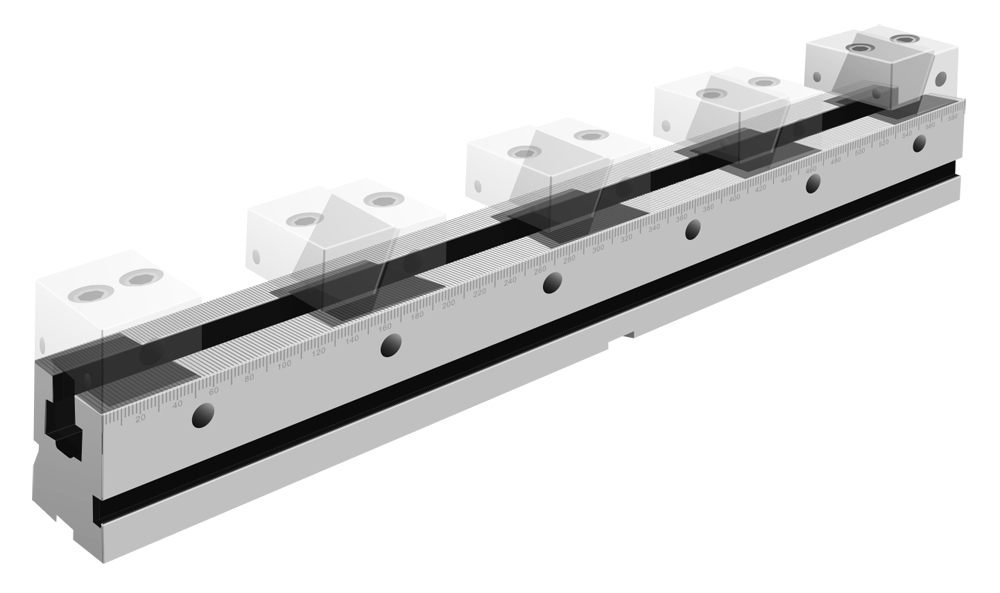

Multiflex vice type MFS 75/400

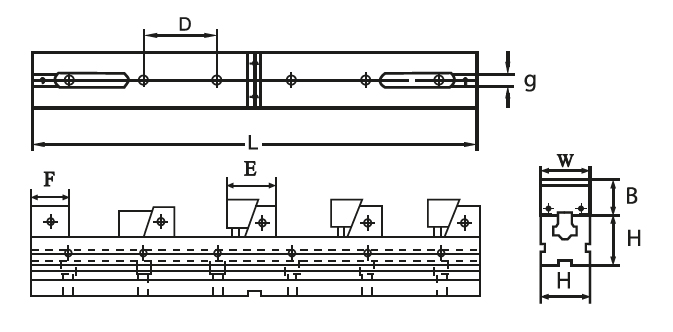

Drawing 1 Multiflex vice type MFS 75/400

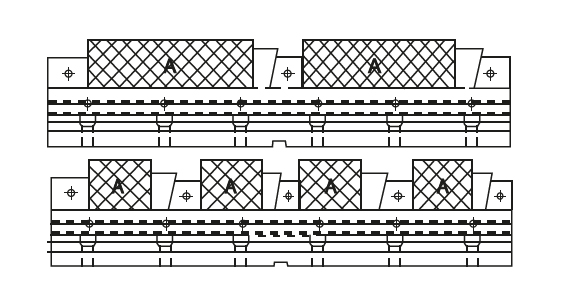

Drawing 2 Multiflex vice type MFS 75/400

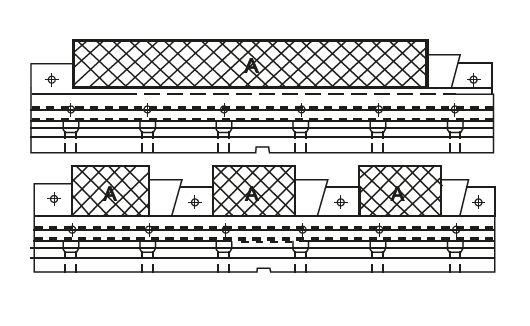

Drawing 3 Multiflex vice type MFS 75/400

€1,267.13 *
€1,507.88 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-MFS-75/400
  • Customs tariff number: 8466 2098
  • European article number: 4049794050972
  • Weight: 26,08 kg
  • In stock: 2
Description Technical data Product Safety Information Evaluations 0
Description
Schraubstock, Mehrfach-Spanneinrichtung Typ MFS - Backenbreite: 75 mm - Länge: 400 mm... more
Close menu
Product information "Schraubstock Mehrfachspanner 75 / 400"

Schraubstock, Mehrfach-Spanneinrichtung Typ MFS

- Backenbreite: 75 mm
- Länge: 400 mm

- zum Spannen von mehreren Werkstücken
- variable Anpassung der Spannelemente an die
  Werkstückabmessungen
- optimale Nutzung des Arbeitsbereichs einer Maschine
- mit Skalierung auf der Spannleiste
- Lieferumfang: 1 Spannleiste, 1 feste Backe (glatt)
  und 3 Spannbacken (glatt)
- inkl. 4 Spannpratzen mit Nutensteinen und Schrauben,
  2 Passsteine, 4 Werkstückanschläge, Spannschlüssel

Type: Multiflex vices
Jaw width: 75 mm
Type: mechanically
Make: Zentra
Related links to "Schraubstock Mehrfachspanner 75 / 400"
Technical data
H mm L mm W mm D mm F mm E mm B mm g mm... more
Zurück
H
mm		 L
mm		 W
mm		 D
mm		 F
mm		 E
mm		 B
mm		 g
mm		 1xA 2xA 3xA 4Xa Max. Spannkraft /
Clamping force daN
75 400 74 100 50 70 - 75 40 16 275 100 41 12 1500
500 375 150 75 37
600 475 200 108 62
700 575 250 141 87
800 675 300 174 112

Inkl. 4 Spannpratzen mit Nutensteinen und Schrauben, 2 Passsteine, 4 Werkstückanschläge, Spannschlüssel
Incl. 4 brackets, t-nuts, screws, 2 key-nuts, 4 work piece stops and wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
