Revolving tube centre BASIC, MT 5 / 250

Preview: Revolving tube centre BASIC, MT 5 / 250 Preview: Drawing Revolving tube centre BASIC, MT 5 / 250
Revolving tube centre BASIC, MT 5 / 250

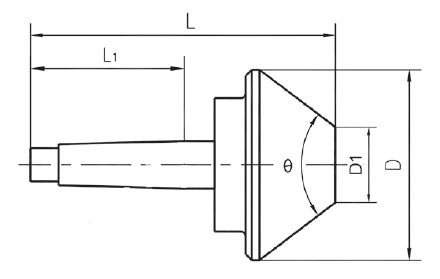

Drawing Revolving tube centre BASIC, MT 5 / 250

€299.74 *
€356.69 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-MLZK-5/250
  • Customs tariff number: 8466 2091
  • European article number: 4049794059166
  • Weight: 30 kg
  • In stock: 10
Description Technical data Evaluations 0
Description
Revolving tube centre, BASIC type MLZK - MT 5 - D 250 mm more
Close menu
Product information "Revolving tube centre BASIC, MT 5 / 250"

Revolving tube centre, BASIC type MLZK

- MT 5
- D 250 mm

Related links to "Revolving tube centre BASIC, MT 5 / 250"
Technical data
MK / MT D mm D1 mm L mm L1 mm Winkel / Angle Drehzahl / Speed max. Werkstück / Work... more
Zurück
MK /
MT		D
mm		D1
mm		L
mm		L1
mm		Winkel /
Angle		Drehzahl /
Speed max.		Werkstück /
Work piece max. kg
260201326460°4000200
3100301708160°3000600
416040232102,560°1900800
520040252129,560°15001600
525057281129,560°13001800
62505735518160°12002000

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
