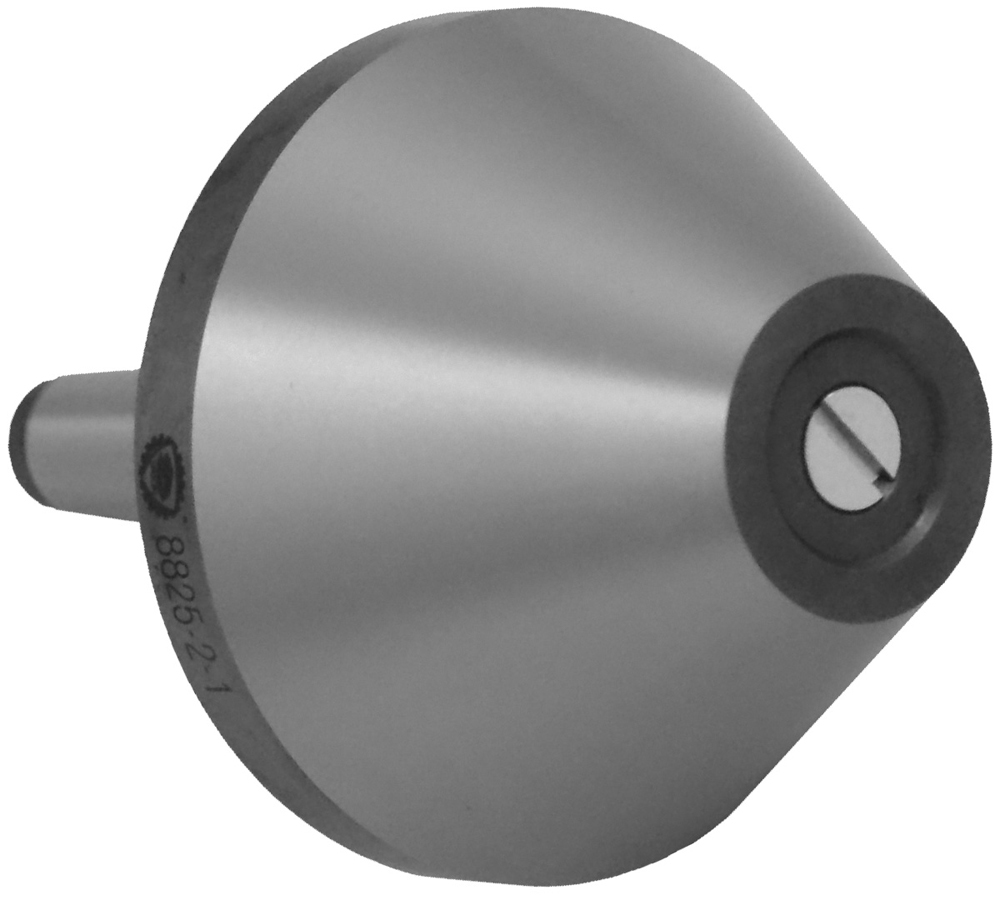

Truncated 60° point centre Bison type 8825-4

€208.50 *
€248.12 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 800002604
  • 84661031
  • 5,11 kg
  • 0
Truncated 60° point centre - Bison type 8825 MT 4, size 4 - DIN 228 - for holding tubular... more
Product information "Truncated 60° point centre Bison type 8825-4"

Truncated 60° point centre

- Bison type 8825 MT 4, size 4
- DIN 228
- for holding tubular workpieces

Related links to "Truncated 60° point centre Bison type 8825-4"

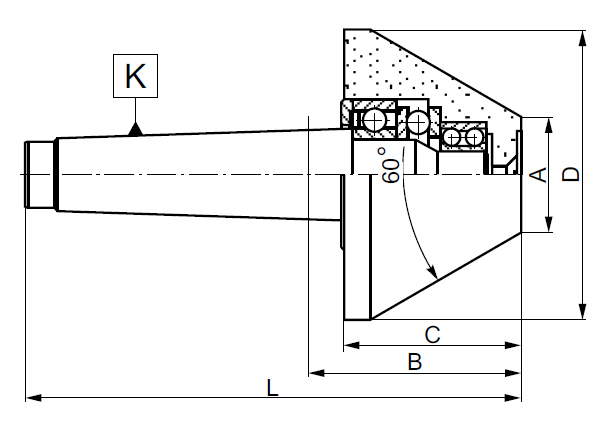

Größe / Size K MK / K MT Gewicht max. / Max. weight U min. / RPM... more
Größe /
Size
K MK /
K MT
Gewicht max. /
Max. weight
U min. /
RPM
Rundlaufabweichung /
Max. concentr. error
A B C D L
1 1 100 5000 0,008 20 40,5 35 50 94,0
2 2 180 5000 0,008 30 41,5 35 60 105,5
2-1 2 300 4500 0,008 30 59,0 53 80 123,0
3 3 350 4500 0,008 30 59,0 53 80 140,0
3-1 3 550 3000 0,008 40 67,0 61 100 148,0
3-2 3 600 3000 0,008 50 76,0 70 120 157,0
4 4 600 3000 0,008 40 68,5 61 100 171,0
4-1 4 700 3000 0,008 50 77,5 70 120 180,0
4-2 4 700 3000 0,010 70 77,5 70 140 180,0
5 5 750 3000 0,010 50 77,5 70 120 207,0
5-1 5 750 2000 0,020 100 77,5 70 170 207,0
6 6 2000 1000 0,050 180 116,0 107 292 298,0

  Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
